Product Summary

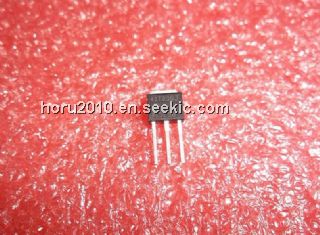

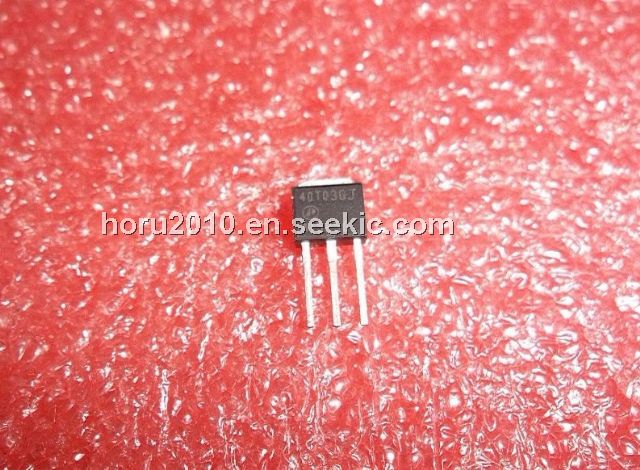

The AP40T03GJ is an advanced power MOSFET from APEC provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-252 package is widely preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. The through-hole version (AP40T03GJ) are available for low-profile applications.

Parametrics

AP40T03GJ absolute maximum ratings: (1)VDS, Drain-Source Voltage: 30V; (2)VGS, Gate-Source Voltage: ±25V; (3)ID@TA=25℃, Continuous Drain Current: 28A; (4)ID@TA=70℃, Continuous Drain Current: 24A; (5)IDM, Pulsed Drain Current: 95A; (6)PD@TA=25℃, Total Power Dissipation: 31.25W; (7)Linear Derating Factor: 0.25W/℃; (8)TSTG, Storage Temperature Range: -55 to 150 ℃; (9)TJ, Operating Junction Temperature Range: -55 to 150℃.

Features

AP40T03GJ features: (1)Simple Drive Requirement; (2)Low Gate Charge; (3)Fast Switching.

Diagrams

AP40T03GJ block diagram
