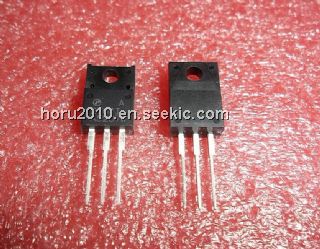

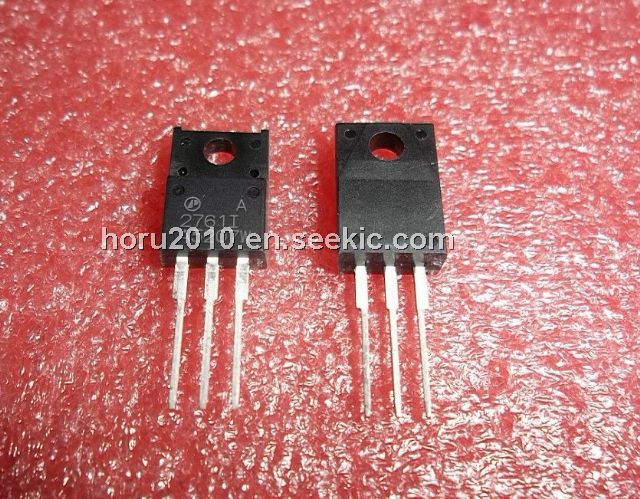

Product Summary

The AP2761I-A is an N-channel enhancement mode power MOSFET. The AP2761I-A specially designed as main switching devices for universal 90~265VAC off-line AC/DC converter applications. TO-220CFM type provide high blocking voltage to overcome voltage surge and sag in the toughest power system with the best combination of fast switching,ruggedized design and cost-effectiveness.

Parametrics

AP2761I-A absolute maximum ratings: (1)VDS, Drain-Source Voltage: 650V; (2)VGS, Gate-Source Voltage: ±30V; (3)ID@TC=25℃, Continuous Drain Current, VGS @ 10V: 10A; (4)ID@TC=100℃, Continuous Drain Current, VGS @ 10V: 6.4A; (5)IDM, Pulsed Drain Current1: 36A; (6)PD@TC=25℃, Total Power Dissipation: 37W; (7)Linear Derating Factor: 0.3W/℃; (8)EAS, Single Pulse Avalanche Energy2: 65mJ; (9)IAR, Avalanche Current: 10A; (10)TSTG, Storage Temperature Range: -55 to 150℃; (11)TJ, Operating Junction Temperature Range: -55 to 150℃.

Features

AP2761I-A features: (1)Repetitive Avalanche Rated; (2)Fast Switching RDS(ON); (3)Simple Drive Requirement; (4)RoHS Compliant.

Diagrams

AP2761I-A block diagram
