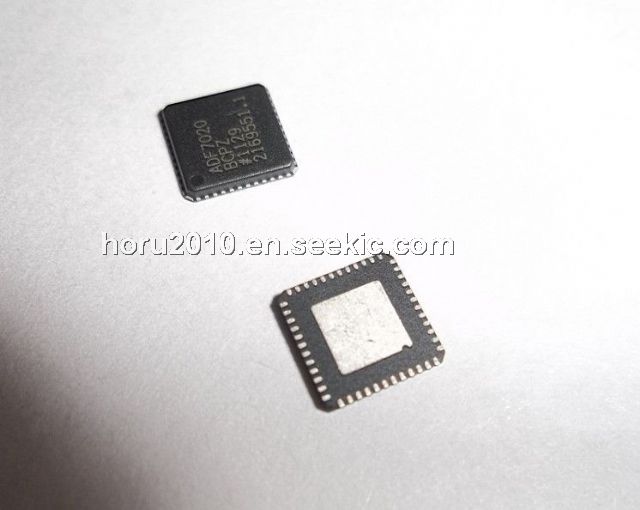

Product Summary

The ADF7020 is a low power, highly integrated FSK/GFSK/ASK/OOK/GOOK transceiver designed for operation in the low UHF and VHF bands. The ADF7020 uses an external VCO inductor that allows users to set the operating frequency anywhere between 135 MHz and 650 MHz. Using the divide-by-2 circuit allows users to operate the device as low as 80 MHz. The typical range of the VCO is about 10% of the operating frequency. The applications of the ADF7020 include Low cost wireless data transfer, Wireless medical applications, Remote control/security systems, Wireless metering, Keyless entry, Home automation, Process and building control.

Parametrics

ADF7020 absolute maximum ratings: (1)VDDto GND: -0.3 V to +5 V; (2)Analog I/O Voltage to GND: -0.3 V to AVDD +0.3 V; (3)Digital I/O Voltage to GND: -0.3 V to DVDD +0.3 V; (4)Operating Temperature Range, Industrial (B Version): -40℃ to +85℃; (5)Storage Temperature Range: -65℃ to +125℃; (6)Maximum Junction Temperature: 150℃; (7)MLF θJAThermal Impedance: 26℃/W; (8)Reflow Soldering, Peak Temperature: 260℃; Time at Peak Temperature: 40 sec.

Features

ADF7020 features: (1)Low power, low IF transceiver; (2)Frequency bands, 135 MHz to 650 MHz, direct output; 80 MHz to 325 MHz, divide-by-2 mode; (3)Data rates supported, 0.15 kbps to 200 kbps, FSK; 0.15 kbps to 64 kbps, ASK; (4)2.3 V to 3.6 V power supply; (5)Programmable output power, 20 dBm to +13 dBm in 63 steps; (6)Receiver sensitivity, 119 dBm at 1 kbps, FSK, 315 MHz; 114 dBm at 9.6 kbps, FSK, 315 MHz; 111.8 dBm at 9.6 kbps, ASK, 315 MHz; (7)Low power consumption, 17.6 mA in receive mode; 21 mA in transmit mode (10 dBm output); (8)On-chip VCO and fractional-N PLL; (9)On-chip 7-bit ADC and temperature sensor; (10)Fully automatic frequency control loop (AFC) compensates for lower tolerance crystals; (11)Digital RSSI; (12)Integrated TRx switch; (13)Leakage current <1 μA in power-down mode.

Diagrams

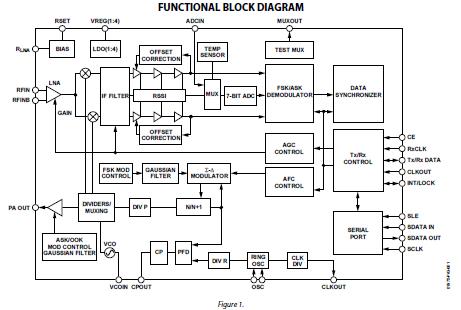

ADF7020 block diagram
