Product Summary
The A3142EUA-T is a Hall-effect switches designed to operate continuously over extended temperatures to +150℃, and is more stable with both temperature and supply voltage changes. The A3142EUA-T unipolar switching characteristic is ideal for use with a simple bar or rod magnet. The A3142EUA-T is identical except for magnetic switch points.The first character of the part number suffix determines the device operating temperature range. Suffix E- is for the automotive and industrial temperature range of －40℃ to +85℃. Suffix L- is for the automotive and military temperature range of －40℃ to +150℃. Three package styles provide a magnetically optimized package for most applications. Suffix -LT is a miniature SOT89/TO－243AA transistor package for surface-mount applications; suffix –UA is a three－lead ultra-mini-SIP.
Parametrics
A3142EUA-T absolute maximum ratings: (1)Supply Voltage, VCC : 28 V; (2)Reverse Battery Voltage, VRCC : －35 V; (3)Magnetic Flux Density, B : Unlimited; (4)Output OFF Voltage, VOUT : 28 V; (5)Reverse Output Voltage, VOUT : －0.5 V; (6)Continuous Output Current, IOUT : 25 mA.
Features
A3142EUA-T features: (1)Superior Temp. Stability for Automotive or Industrial Applications; (2)4.5 V to 24 V Operation … Needs Only An Unregulated Supply; (3)Open-Collector 25 mA Output … Compatible with Digital Logic; (4)Reverse Battery Protection; (5)Activate with Small, Commercially Available Permanent Magnets; (6)Solid-State Reliability; (7)Small Size; (8)Resistant to Physical Stress.

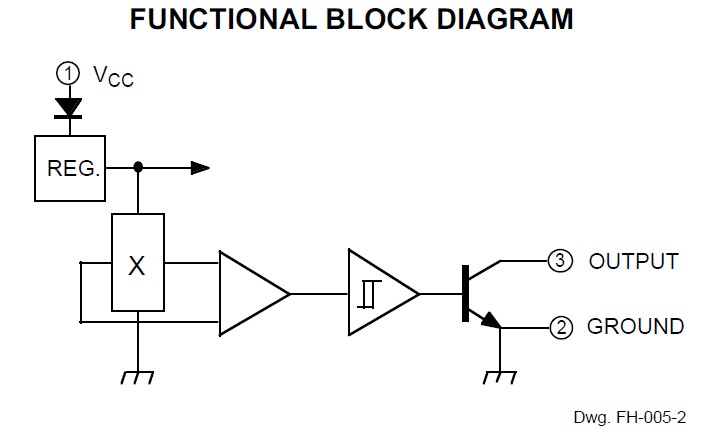

Diagrams
