Product Summary
The 3.0SMCJ30CA is a surface mount transient voltage suppressor.
Parametrics
3.0SMCJ30CA absolute maximum ratings: (1)Peak Pulse Power Dissipation 10/1000μS Waveform (Note 1, 2) Figure 3, PPPM: 3000 Minimum W; (2)Peak Pulse Current on 10/1000μS Waveform (Note 1) Figure 4, IPPM: See Table 1 A; (3)Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load (JEDEC Method) (Note 2, 3), IFSM: 100 A; (4)Operating and Storage Temperature Range, Tj, TSTG: -55 to +150℃.
Features
3.0SMCJ30CA features: (1)Glass Passivated Die Construction; (2)3000W Peak Pulse Power Dissipation; (3)5.0V - 170V Standoff Voltage; (4)Uni- and Bi-Directional Versions Available; (5)Excellent Clamping Capability; (6)Fast Response Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

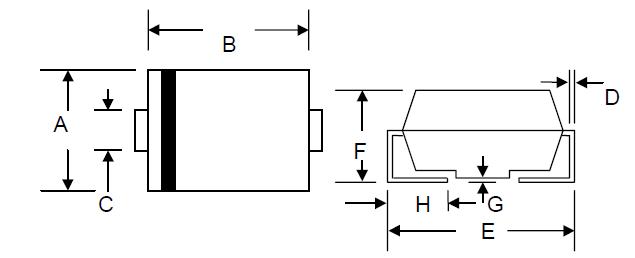

Diagrams
