Product Summary

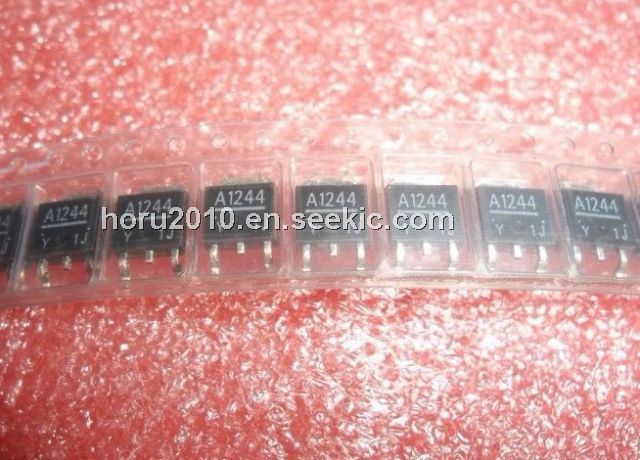

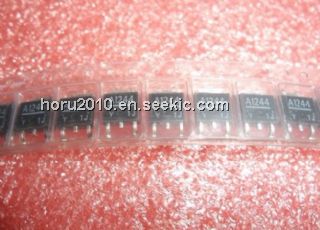

The 2SA1244-Y is a Silicon PNP Epitaxial Type. The applications of the 2SA1244-Y include Low collector saturation voltage: VCE (sat) = −0.4 V (max) (IC = −3 A), High speed switching time: tstg = 1.0 μs (typ.) and Complementary to 2SC3074.

Parametrics

2SA1244-Y absolute maximum ratings: (1)Collector-base voltage : -60 V; (2)Collector-emitter voltage : -50 V; (3)Emitter-base voltage : -5 V; (4)Collector current : -5 A; (5)Base current : -1 A; (6)Collector power : 1.0W; (7)Junction temperature : 150 ℃; (8)Storage temperature range : -55 to 150 ℃.

Features

2SA1244-Y features: (1)Collector cut-off current : -1 μA; (2)Emitter cut-off current : -1 μA; (3)Collector-emitter breakdown voltage : -50V.

Diagrams

2SA1244-Y dimension
