Product Summary

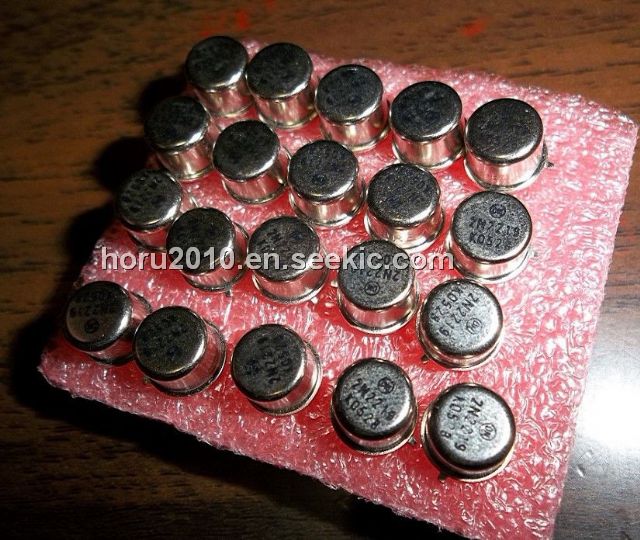

The 2N2219 is a silicon planar epitaxial NPN transistor in Jedec TO-39. The device is designed for high-speed switching applications at collector currents up to 500 mA, and features useful current gain over a wide range of collector current, low leakage currents and low saturation voltages.

Parametrics

2N2219 absolute maximum ratings: (1)VCBO, Collector-base Voltage (IE =0): 60 V; (2)VCEO, Collector-emitter Voltage (IB =0): 30 V; (3)VEBO, Emitter-base Voltage (IC =0): 5 V; (4)IC, Collector Current: 0.8 A; (5)Ptot, Total Power Dissipation at Tamb ≤ 25℃: 0.8W; (6)Tstg, Storage Temperature: –65 to 200℃; (7)Tj, Junction Temperature: 175℃.

Features

2N2219 features: (1)ICBO, Collector Cutoff Current (IE =0): 10μA; (2)IEBO, Emitter Cutoff Current (IC =0): 10nA; (3)V(BR) CBO, Colllector-base Breakdown Voltage (IE =0): 60V; (4)V(BR)CEO, Collector-emitter Breakdown Voltage (IB =0): 30V; (5)V(BR) EBO, Emittter-base Breakdown Voltage (IC =0): 5V; (6)VCE (sat), Collector-emitter Saturation Voltage: 0.4V; (7)VBE (sat), Base-emitter Saturation Voltage: 1.3V.

Diagrams

2N2219 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N2219A
2N2219A
STMicroelectronics
Transistors Bipolar (BJT) NPN General Purpose
Data Sheet
0-1: $0.44
1-10: $0.39
10-100: $0.32
100-250: $0.28
2N2219AL
2N2219AL
Other

Data Sheet
Negotiable
2N2219A-BP
2N2219A-BP
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) 800mA 50V
Data Sheet
0-8000: $0.15
2N2219A-B
2N2219A-B
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) 800mA 50V
Data Sheet
Negotiable
2N2219
2N2219
Central Semiconductor
Transistors Bipolar (BJT) NPN Ampl/Switch
Data Sheet
0-1: $0.77
1-25: $0.71
25-100: $0.67
100-250: $0.61
