The 2N1547 is a GE PNP power BJT.
Parametrics
2N1547 absolute maximum ratings: (1)IC max: 5.0A; (2)VBR CEO: 50V; (3)VBR CBO: 100V; (4)Derate above 25℃: 1.2W; (5)Min HFE: 75W; (6)Max hFE: 150W, @IC(test): 3.0A; @VCE: 2.0V; (7)Trans freq(hz)min: 1.0K; (8)ICBO max. @VCB max.: 20mA; (9)R(sat): 66mJ; (10)Operating temperature max: 100℃.
Features
2N1547 features: (1)Package style: TO-3; (2)Surface mounted: N Y/N; (3)Pinout equivalence number: 3-14.

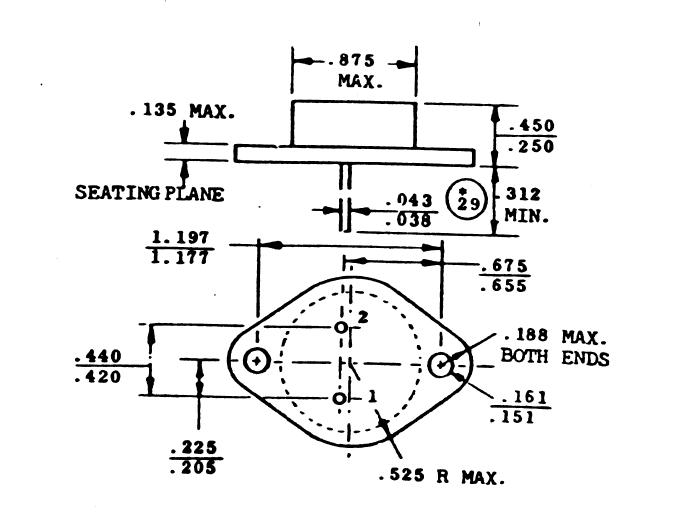

Diagrams
