Product Summary

The AO4407A is a P-channel enhancement mode field effect transistor. The AO4407A uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. The AO4407A is suitable for use as a load switch or in PWM applications. Standard product AO4407A is Pb-free.

Parametrics

AO4407A absolute maximum ratings: (1)Drain-source voltage: -30 V; (2)Gate-source voltage: ±12 V; (3)Continuous drain current TA=25°C: -12 A, -9.2 A; TA=70°C: -10 A, -7.4 A; (4)Pulsed drain current: -60 A; (5)Power dissipation TA=25°C: 3.1 W, 1.7 W; TA=70°C: 2.0 W, 1.1 W; (6)Junction and storage temperature range: -55 to 150 °C; (7)Avalanche current: 26 A; (8)Avalanche energy L=0.1mH: 101 mJ.

Features

AO4407A features: (1)VDS = -30V; (2)ID = -12A (VGS = -10V); (3)RDS(ON)< 11mΩ (VGS = -20V); (4)RDS(ON)< 13mΩ (VGS = -10V); (5)RDS(ON)< 38mΩ (VGS = -10V).

Diagrams

AO4407A pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

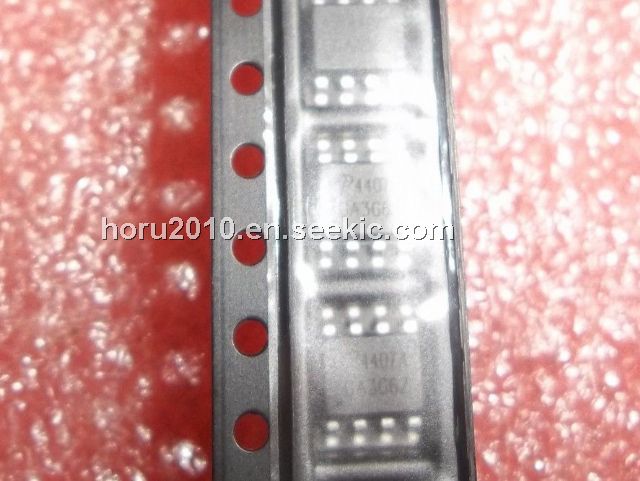

AO4407A
AO4407A

MOSFET P-CH -30V -12A 8-SOIC
Data Sheet
0-1: $0.40
1-25: $0.31
25-100: $0.27
100-250: $0.23
250-500: $0.20
500-1000: $0.16
