Product Summary

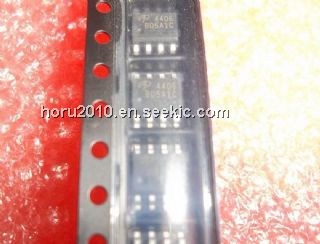

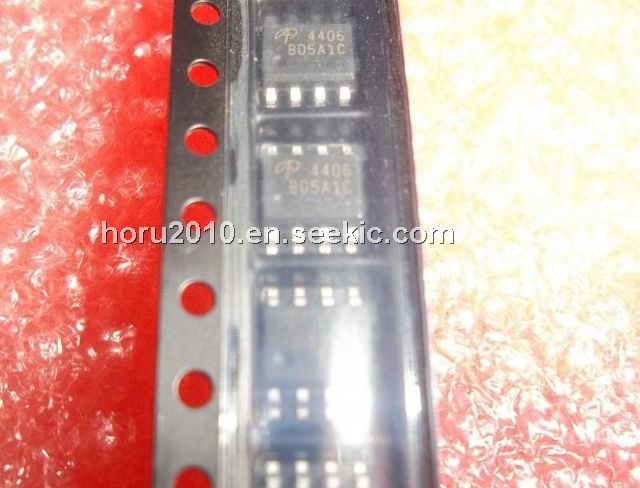

The AO4406A is a 30V N-Channel MOSFET. It uses advanced trench technology to provide excellent RDS(ON) with low gate charge. This device is suitable for high side switch in SMPS and general purpose applications.

Parametrics

AO4406A absolute maximum ratings: (1)Drain-Source Voltage: 30 V; (2)ID Drain Current: 13A; (3)IDM Drain Current - Pulsed: 100A; (4)VGSS Gate-Source voltage: ± 20 V; (5)EAS Single Pulsed Avalanche Energy: 24 mJ; (6)IAR Avalanche Current: 22 A; (7)PD Power Dissipation: 3.1W; (8)TJ, TSTG Operating and Storage Temperature Range: -55 to +150 °C.

Features

AO4406A features: (1)VDS: 30V; (2)ID (at VGS=10V)13A; (3)RDS(ON)(at VGS=10V)< 11.5mΩ; (4)RDS(ON)(at VGS = 4.5V)< 15.5mΩ.

Diagrams

AO4406A plackage dimensions
