Product Summary

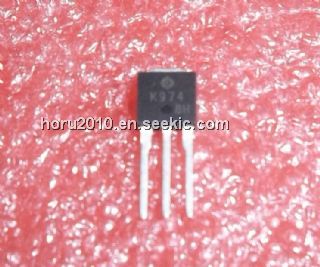

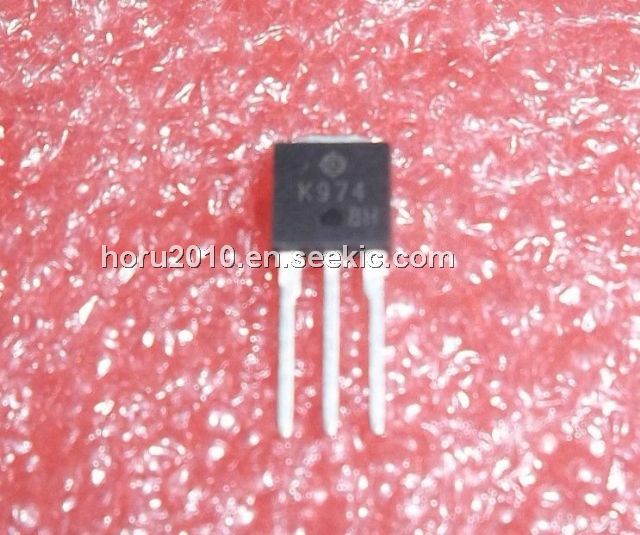

The 2SK974L is a Silicon N-Channel MOS FET. It is used for High speed power switching.

Parametrics

2SK974L absolute maximum ratings: (1)Drain to source voltage VDSS: 60 V; (2)Gate to source voltage VGSS: ±20 V; (3)Drain current ID: 3A; (4)Drain peak current ID(peak): 12 A; (5)Body to drain diode reverse drain current IDR: 3A; (6)Channel dissipation Pch: 20 W; (7)Channel temperature Tch: 150 °C; (8)Storage temperature Tstg: –55 to +150 °C.

Features

2SK974L features: (1)Low on-resistance; (2)High speed switching; (3)Low drive current; (4)4 V gate drive device– Can be driven from 5 V source; (5)Suitable for motor drive, DC-DC converter,; (6)power switch and solenoid drive.

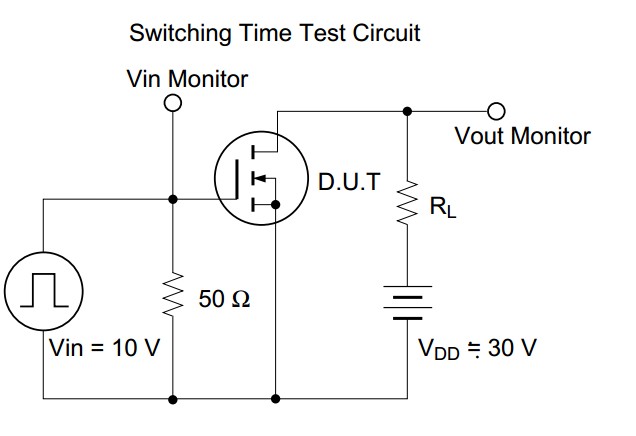

Diagrams

2SK974L package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2SK974L
2SK974L
Other

Data Sheet
Negotiable
