Product Summary

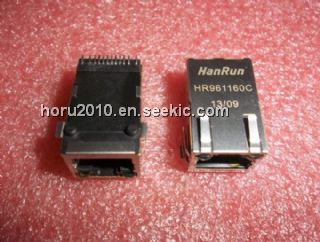

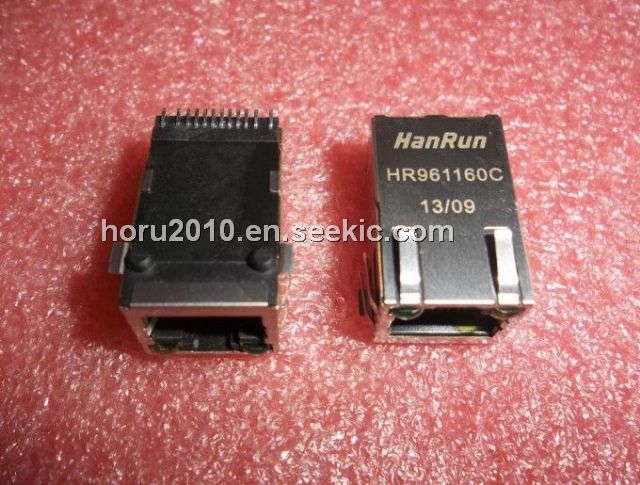

The HR961160C is a 1 × 1 Port Tab-UP Surface Mount RJ45 Connector.

Parametrics

HR961160C absolute maximum ratings: (1)Rohs compliant; (2)Isolation: 1500 vrms; (3)OCL: 350 uH minimum @ 100 HZ 100 mV; (4)Insertion Loss: 1.0 dB; (5)Return loss: 20 dB; (6)Common mode rejection: 30 dB; (7)Crosstalk: 40 dB.

Features

HR961160C features: (1)Rohs compliant; (2)Designed for Network Interface card application; (3)Meets or Exceeds IEEE802.3 standards including 350 uH min OCL with 8 mADC; (4)High performance for EMI suppression, crosstalk, return loss and consistent electrical; (5)Minimum 1500 Vrms isolation per IEEE802.3 requirement; (6)Minimize PCB soace and simolify PCB layout; (7)Less magnetic components to place on PCB, higher reliability and yields.

Diagrams

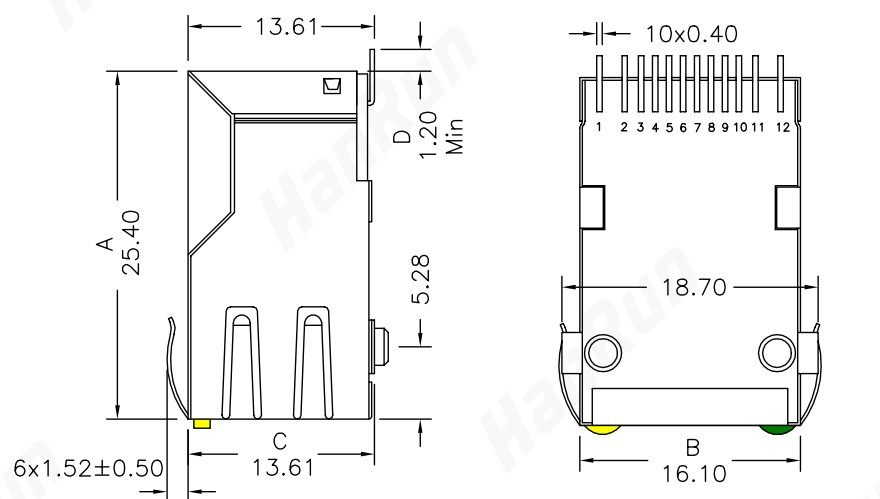

HR961160C block diagram
