Product Summary

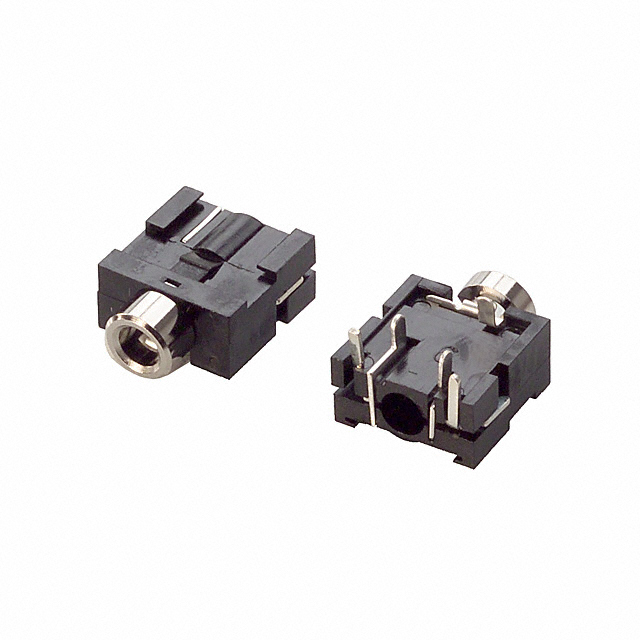

The SJ-3505 is a 3.50mm Audio Jack Connector.

Features

SJ-3505 features: (1)Plug/Mating Plug Diameter: 3.50mm (0.141”, 1/8”, Mini Plug)- Headphone; (2)Number of Positions/Contacts: 3 Conductors, 5 Contacts; (3)Internal Switch(s): Two Switches; (4)Mounting Type: Through Hole, Right Angle; (5)Termination: Solder; (6)Shielding: Unshielded; (7)Color - Contact: Silver; (8)Contact Material: Brass; (9)Contact Material - Plating: Silver; (10)Housing Material: Plastic; (11)Housing Color: Black; (12)Operating Temperature: -25°C ~ 85°C; (13)Voltage - Rated: 12VDC; (14)Current Rating: 1A.

Diagrams

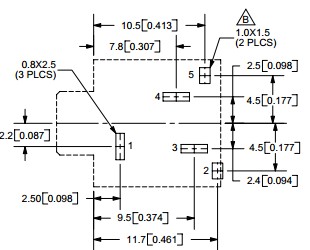

SJ-3505 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SJ-3505
SJ-3505

CONN 3.5MM RTANG STEREO JACK PCB
Data Sheet
0-1: $1.57
1-10: $1.31
10-100: $0.97
100-500: $0.77
500-1000: $0.70
1000-2500: $0.63
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SJ-3401 (WHITE) 2
SJ-3401 (WHITE) 2"
3M Electronic Specialty
Cable Mounting & Accessories 2" 50yd FAB LOOP WH
Data Sheet
0-1: $30.70
1-5: $29.24
5-10: $27.65
10-25: $26.59
SJ-3401 BLACK 1
SJ-3401 BLACK 1"
3M Electronic Specialty
Cable Mounting & Accessories VELCRO 150' BLK 1"
Data Sheet
0-1: $21.56
1-5: $20.04
SJ-3402-1
SJ-3402-1" WHITE
3M Electronic Specialty
Cable Mounting & Accessories 1"W 50yd FAB HOOK WH
Data Sheet
0-1: $21.59
1-5: $20.56
5-10: $19.44
10-25: $18.68
SJ-3402-2
SJ-3402-2" WHITE
3M Electronic Specialty
Cable Mounting & Accessories 2"W 50yd FAB HOOK WH
Data Sheet
0-1: $43.16
1-5: $41.10
5-10: $38.87
10-25: $37.37
SJ-3463
SJ-3463
3M Electronic Specialty
Cable Mounting & Accessories Dual Lock Recl BLK Fastener 13/16"
Data Sheet
0-1: $0.22
1-50: $0.21
50-100: $0.19
SJ-3514
SJ-3514

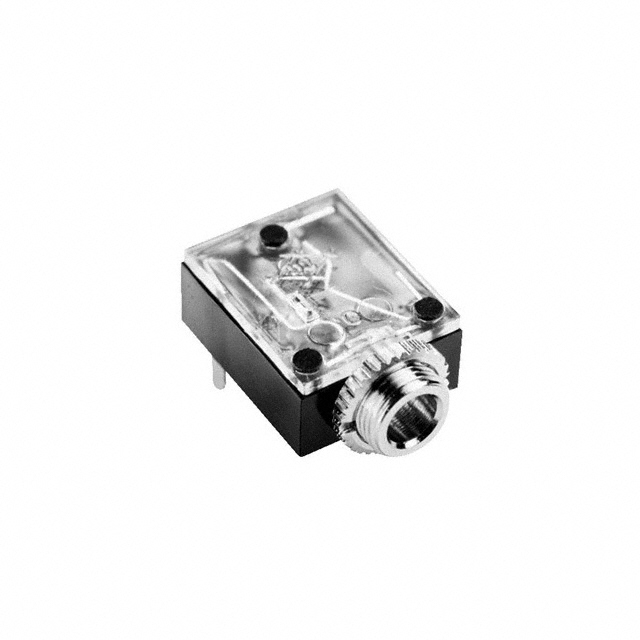

CONN AUDIO JACK 3.5MM STEREO
