Product Summary

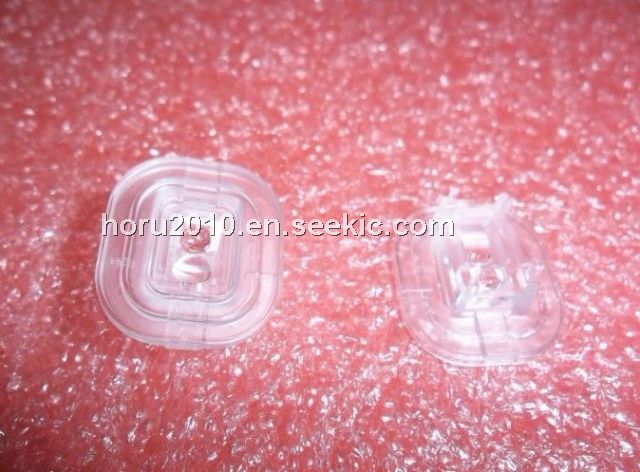

The ADNS-6190-002 LaserStream gaming round lens is designed for use with Avago Technologies ADNS-9500 and ADNS-9800 LaserStream gaming sensors. The ADNS-6190-002 lens is a precision
molded optical component and should be handled with care to avoid scratching and contamination of the optical surfaces.
Features

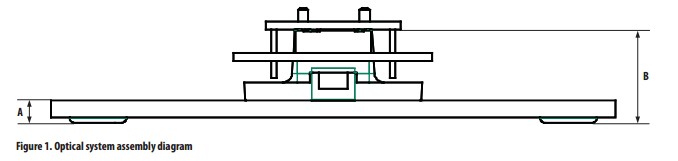

ADNS-6190-002 features: (1)Distance from Object Surface to Lens Reference Plane: A 2.18 to 2.62 mm When used with ADNS-9500 and ADNS-9800; (2)Distance from Object Surface to Sensor Reference Plane: B 9.95 mm Sensor Board must be in contact with lens housing surface; (3)Design Wavelength: 842 nm; (4)Lens Material* Index of Refraction: 1.5693 to 1.5735.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ADNS-6190-002 |
Avago Technologies |
Optical Navigation Sensors Lens |
Data Sheet |
|
|
|||||||||||||
