ADNS-9500

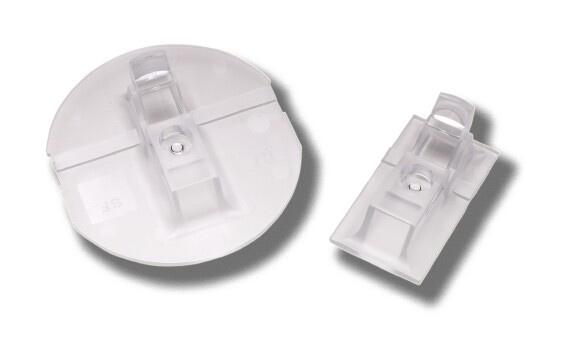

LaserStream gaming round lens, ADNS-9500, 1.65 to 3.3V, 716uW, 11mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.25~2.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 99 :	2.45 / Piece
100 ~ 1000 :	2.25 / Piece

PartNumber:: ADNS-9500

Brand:: Avago Technologies US Inc. - Avago | D/C: 11+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Datasheet:: ADNS-9500 Datasheet download

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-10

From Other Seller

Part Number:ADNS-9500
US $2.25 - 2.45
Quantity:

piece

Product Summary

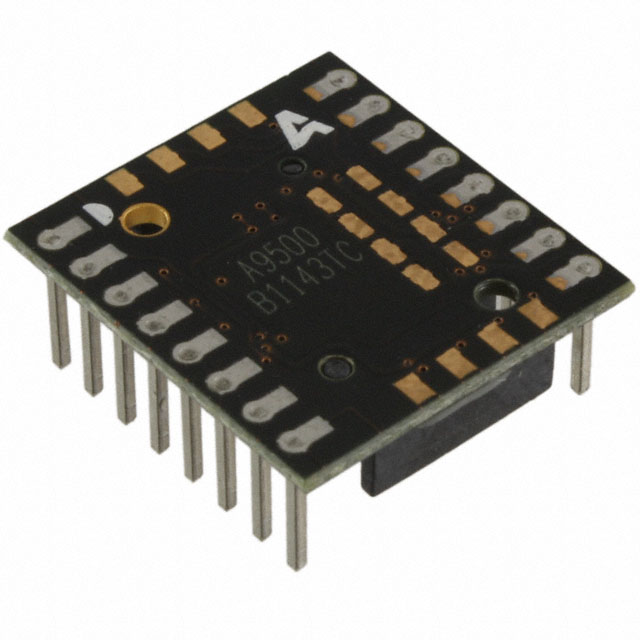

The ADNS-9500 LaserStream gaming sensor comprises of sensor and VCSEL in a single chip-on-board (COB) package. The ADNS-9500 provides enhanced features like pro-grammable frame rate, programmable resolution, config-urable sleep and wake up time to suit various PC gamers’preferences. The applications of the ADNS-9500 are Corded and cordless gaming laser mice, Optical trackballs, Motion input devices.

Parametrics

ADNS-9500 absolute maximum ratings: (1)Storage Temperature TS: -40 to 85 °C; (2)Lead-Free Solder Temp: 260 °C; (3)Supply Voltage VDD5: -0.5 to 5.5 V; (4)VDD3: -0.5 to 3.4 V; (5)VDDIO: -0.5 to 3.4 V; (6)ESD (Human body model): 2 kV; (7)Input Voltage VIN: -0.5 to 3.4 V; (8)Laser Output Power LOPmax: 716 uW; (9)VCSEL DC Forward Current IF: 11 mA; (10)VCSEL Reverse Voltage VR: 5 V.

Features

ADNS-9500 features: (1)Small form factor chip-on-board package; (2)Dual power supply selections, 3V or 5V; (3)VDDIO range: 1.65 to 3.3V; (4)16-bits motion data registers; (5)High speed motion detection at 150ips and acceleration up to 30g; (6)Advanced technology 832-865nm wavelength VCSEL; (7)Single mode lasing; (8)No laser power calibration needed; (9)Compliance to IEC/EN 60825-1 Eye Safety- Class 1 laser power output level, On-chip laser fault detect circuitry; (10)Self-adjusting frame rate for optimum performance; (11)Motion detect pin output; (12)Internal oscillator – no external clock input needed.
