Product Summary

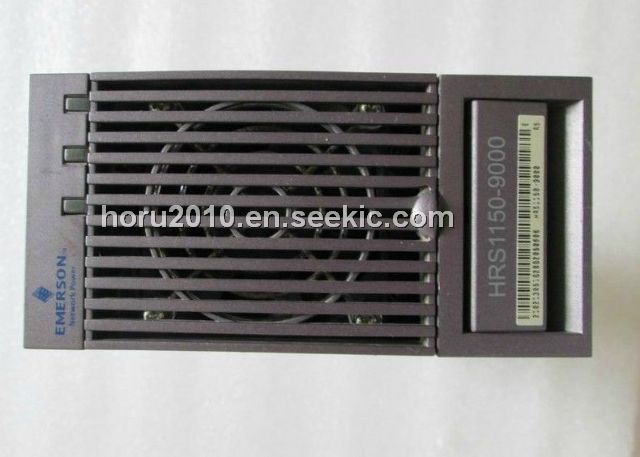

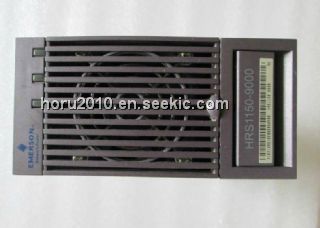

The HRS1150-9000 is a Power System.

Parametrics

HRS1150-9000 absolute maximum ratings: (1)Operating temperature: -10 to +55 ℃; (2)Storage temperature: -40 to +70O ℃; (3)Relative humidity: ≤90 %; (4)Input voltage: 90 V to 290 VAC; (5)Input current: 25 A(Max.); (6)Frequency: 45 to 65 Hz; (7)Output power: 3450 W(Max.); (8)Output voltage: -43.2 to -57.6 VDC; (9)Output current: up to 60 A.

Features

HRS1150-9000 features: (1)19 subrack mounting, 3U profile; (2)Wide input voltage range; (3)Active Power Factor Correction; (4)Intelligent battery management function; (5)Environmental parameter monitoring function; (6)Four branches DC distribution output; (7)Hot-swap (rectifier and monitor); (8)Lightning arrester protection inside; (9)RS232/RS422 interface; (10)Front acces; (11)Forced air-cooling.

Diagrams

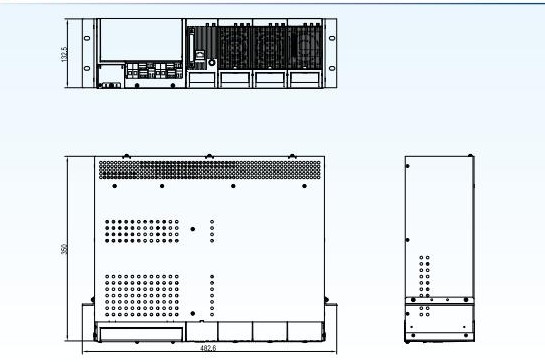

HRS1150-9000 block diagram
