Product Summary

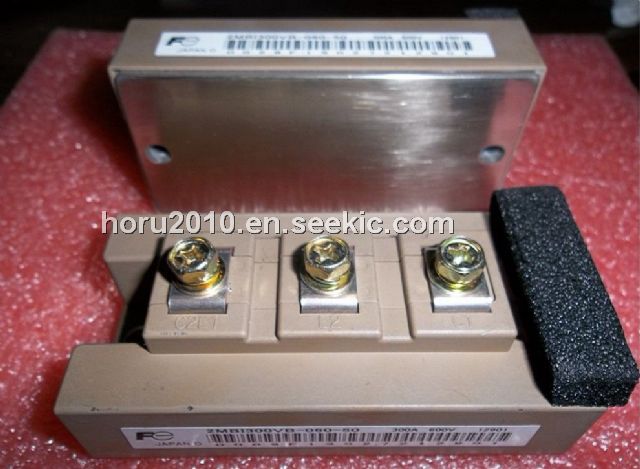

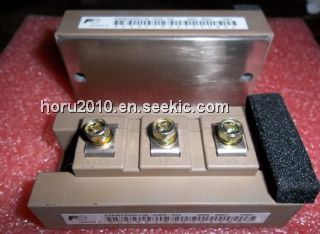

The 2MBI300VB-060-50 is an IGBT module. The applications of it are Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Industrial machines, such as Welding machines.

Parametrics

2MBI300VB-060-50 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 600 V; (2)Gate-Emitter voltage VGES: ±20 V; (3)Collector current: 600A; (4)Collector power dissipation PC 1 device: 1360 W; (5)Junction temperature Tj: 175°C; (6)Operating junction temperature (under switching conditions)Tjop: 150°C; (7)Case temperature TC: 125°C; (8)Storage temperature Tstg: -40 ~ 125°C.

Features

2MBI300VB-060-50 features: (1)High speed switching; (2)Voltage drive; (3)Low Inductance module structure.

Diagrams

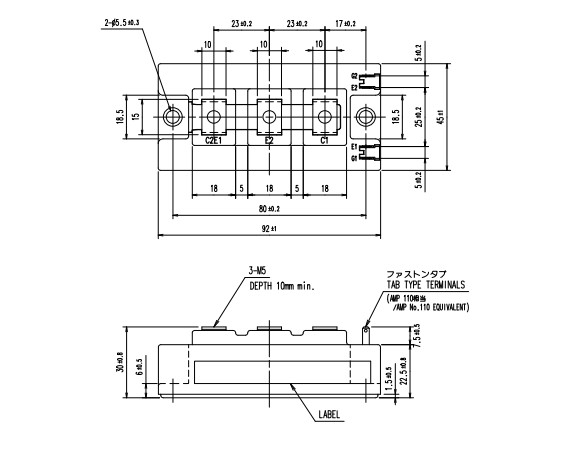

2MBI300VB-060-50 package dimensions
