Product Summary

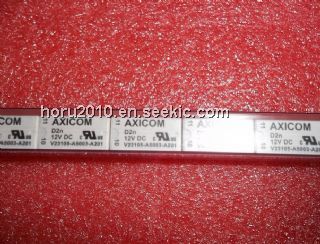

The V23105-A5003-A201 is a D2n Relay. The applications of it are Communications equipment, Office equipment, Measurement and control equipment, Entertainment electronics, Medical Equipment, Consumer electronics.

Parametrics

V23105-A5003-A201 general specifications: (1)Maximum switching current: 3A; (2)Maximum swichting voltage: 3A; (3)Maximum switching capacity: 220VDC; (4)Thermoelectric potential: ＞10uV; (5)Minimum switching voltage: 100uV; (6)Initial contact resistance / measuring condition: ＜100mΩ.

Features

V23105-A5003-A201 features: (1)Standard DIL relay; (2)Dimensions 20.3 x 10.1 x 10.43 mm, 0.800 x 0.400 x 0.450 inch; (3)Switching and continous current 3 A; (4)2 changeover contacts (2 form C / DPDT); (5)Single contacts; (6)Immersion cleanable; (7)Four different coil sensitivities(150, 200, 400, > 500 mW); (8)Surge voltage resistance meets FCC Part 68 requirement: 1.5 kV (10 / 160 µsec)between coil and contacts.

Diagrams

V23105-A5003-A201 package dimensions
