Product Summary

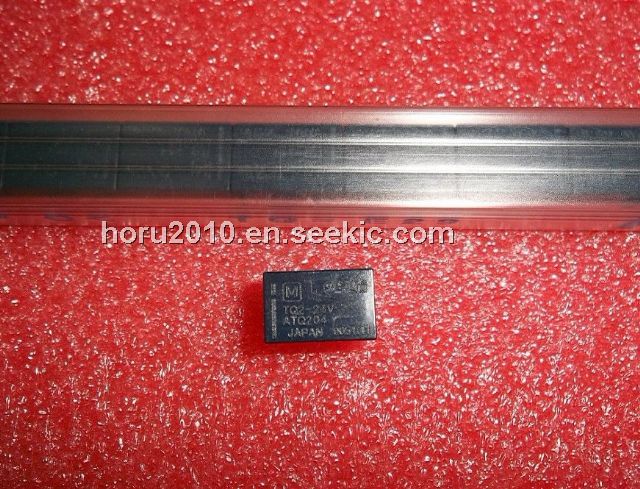

The TQ2-24V is a TQ relay. The applications of the device include Communications, Measurement equipment, OA equipment and Industrial machines.

Parametrics

TQ2-24V absolute maximum ratings: 1)Contact Rating (Current): 1A; (2)Switching Voltage: 125VAC, 110VDC - Max; (3)Coil Current: 8.3mA; (4)Coil Voltage: 24VDC; (5)Turn On Voltage (Max): 18 VDC; (6)Turn Off Voltage (Min): 2.4 VDC.

Features

TQ2-24V features: (1)Flat compact size; (2)Nominal operating power: High sensitivity of 140mW (2 Form C single side stable type); (3)Suitable for SMD automatic insertion (SA type); (4)High density mounting possible; (5)The use of gold-clad twin crossbar contacts ensures high contact reliability; (6)DIL terminal array enables use of IC sockets; (7)Low thermal electromotive force; (8)Latching types also available; (9)Self-clinching terminal also available; (10)A range of surface-mount types is also available; (11)M.B.B. contact types available.

Diagrams

TQ2-24V pulse test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TQ2-24V
TQ2-24V
Panasonic Electric Works
Low Signal Relays - PCB 1A 24VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.22
1-25: $2.04
25-50: $1.96
50-100: $1.65
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TQ2-1.5V
TQ2-1.5V

RELAY TELECOM DPDT 1A 1.5V
Data Sheet
Negotiable
TQ2-12V
TQ2-12V
Panasonic Electric Works
Low Signal Relays - PCB 1A 12VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.01
1-25: $1.80
25-50: $1.63
50-100: $1.37
TQ2-12V-3
TQ2-12V-3
Panasonic Electric Works
Low Signal Relays - PCB Low Profile Sign 1 FormA 30VDC
Data Sheet
0-1: $1.81
1-25: $1.66
25-50: $1.48
50-100: $1.25
TQ2-24V
TQ2-24V
Panasonic Electric Works
Low Signal Relays - PCB 1A 24VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.22
1-25: $2.04
25-50: $1.96
50-100: $1.65
TQ2-2M-12V
TQ2-2M-12V
Panasonic Electric Works
Low Signal Relays - PCB 125VAC M.B.B.Type12V 1FormA 30VDC 0.5A
Data Sheet
0-1: $2.57
1-25: $2.35
25-50: $2.10
50-100: $1.79
TQ2-2M-24V
TQ2-2M-24V
Panasonic Electric Works
Low Signal Relays - PCB 125VAC M.B.B.Type24V 1 Form A 30VDC 0.5A
Data Sheet
0-1: $2.96
1-25: $2.71
25-50: $2.42
50-100: $2.06
