Product Summary

The RY611012 is a General Purpose Relay. The applications of the RY611012 include heating control, interface technology, domestic appliances, timers, temperature control.

Parametrics

RY611012 absolute maximum ratings: (1)Contact arrangement: 1 form C (CO) or 1 form A (NO) or 1 form B (NC); (2)Rated voltage: 250VAC; (3)Max. switching voltage: 400VAC; (4)Rated current: 8A; (5)Breaking capacity max: 2000VA; (6)Contact material: AgNi0.15, AgSnO2; (7)Frequency of operation, with/without load: 6/1200min-1; (8)Operate/release time max: 9/5ms; (9)Bounce time max., form A/form B: 6/10ms.

Features

RY611012 features: (1)1 pole 8A, 1 form C (CO) or 1 form A (NO) or 1 form B (NC) contact; (2)Low component height 12.3mm; (3)5kV/8mm coil-contact; (4)Reinforced insulation (protection class II); (5)Pinnings: 3.2mm and 5mm; (6)Reflow-solderable version; (7)Especially suitable for resistive and inductive loads on form A (NO) and form B (NC) contacts; (8)Plastic materials according to IEC 60335-11) (domestic appliances).

Diagrams

RY611012 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

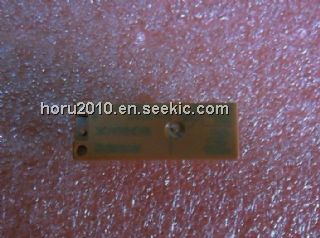

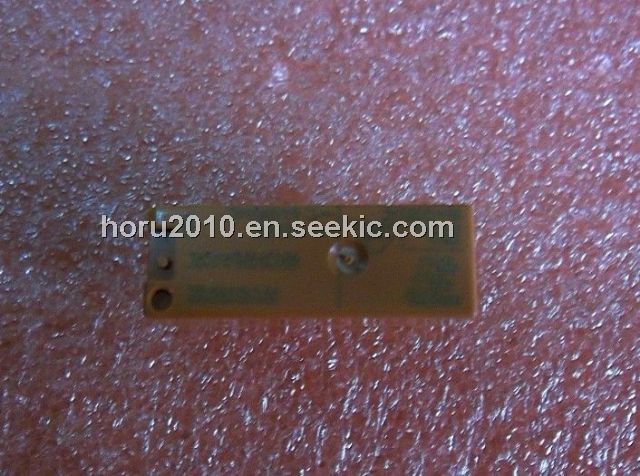

RY611012
RY611012

TE Connectivity / Schrack

General Purpose / Industrial Relays 12VDC SPDT 8A Wash tight

Data Sheet

0-1: $2.82
1-10: $2.63
10-25: $2.47
25-50: $2.23
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RY610005
RY610005

TE Connectivity / Schrack

General Purpose / Industrial Relays SPDT 8 A 5VDC

Data Sheet

0-1: $2.70
1-10: $2.51
10-25: $2.36
25-50: $2.13
RY610006
RY610006

TE Connectivity / Schrack

General Purpose / Industrial Relays SPDT 8A 6VDC 162Ohm Mini PWR PCB Relay

Data Sheet

0-1635: $1.45
RY610009
RY610009

TE Connectivity / Schrack

General Purpose / Industrial Relays SPDT 8A 9VDC 320Ohm Mini PWR PCB Relay

Data Sheet

0-295: $2.49
RY610012
RY610012

TE Connectivity / Schrack

General Purpose / Industrial Relays SPDT 8 A 12VDC

Data Sheet

0-1: $2.83
1-10: $2.63
10-25: $2.47
25-50: $2.23
RY610018
RY610018

TE Connectivity / Schrack

General Purpose / Industrial Relays SPDT 8A 240VAC Mini PWR PCB Relay

Data Sheet

0-1: $2.84
1-25: $2.54
25-50: $2.35
50-100: $1.95
RY610024
RY610024

TE Connectivity / Schrack

General Purpose / Industrial Relays 24VDC SPDT 8A Wash tight

Data Sheet

0-1: $2.82
1-10: $2.63
10-25: $2.47
25-50: $2.23
