Product Summary

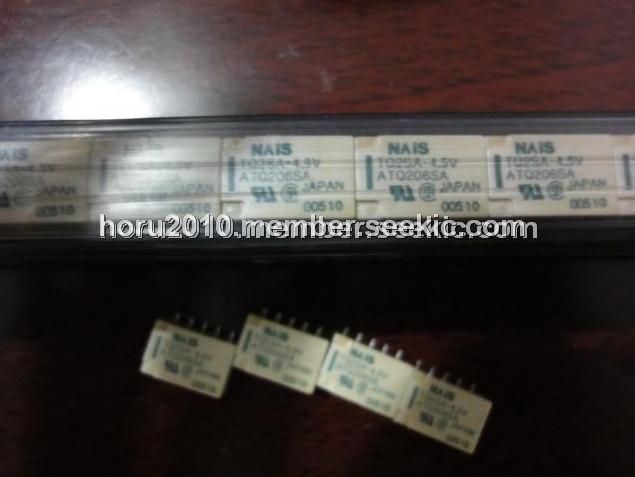

The TQ2SADC4.5V is a low-profile surface-mount relay.
Parametrics
TQ2SADC4.5V absolute maximum ratings: (1)Nominal switching capacity (resistive load): 2 A 30 V DC, 0.5 A 125 V AC; (2)Max. switching power (resistive load):60 W, 62.5 VA; (3)Max. switching voltage:220 V DC, 125 V AC; (4)Max. switching current:2 A; (5)Min. switching capacity (Reference value)#1:10 μA 10 mV DC.
Features
TQ2SADC4.5V features: (1)Low-profile: 6 mm .236 inch (Tape height: max. 6.5 mm .256 inch); (2)Tape and reel package is available as standard packing style; (3)Surge withstand between contacts and coil: 2,500 V; (4)Breakdown voltage between contacts and coil: 1,500 V; (5)Capacity: 2 A; (6)High sensitivity: 2 Form C; 140 mW power consumption (Single side stable type).

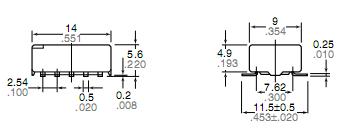

Diagrams
TQ2S series |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TQ2SA-1.5V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 1.5VDC DPDT NON-LATCHING SMD |
Data Sheet |
|
|
|||||||||||||
TQ2SA-1.5V-X |
Panasonic Electric Works |
Low Signal Relays - PCB RELAY 2A 1.5VDC LOW PROFILE SMD |
Data Sheet |
|
|
|||||||||||||
TQ2SA-1.5V-Z |
Panasonic Electric Works |
Low Signal Relays - PCB Low Profile 1.5V 2Form C 2A 30VDC SMD |
Data Sheet |
|
|
|||||||||||||
TQ2SA-12V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 12VDC DPDT NON-LATCHING SMD |
Data Sheet |
|
|
|||||||||||||
TQ2SA-12V-X |
Panasonic Electric Works |
Low Signal Relays - PCB Low Profile 12V 2Form C 2A 30VDC SMD |
Data Sheet |
|
|
