Product Summary
The TOP210PFI is a Three-terminal Off-line PWM Switch.
Parametrics
TOP210PFI absolute maximum ratings: (1)DRAIN Voltage: - 0.3 to 700 V; (2)CONTROL Voltage: - 0.3 V to 9 V; (3)CONTROL Current: 100 mA; (4)Storage Temperature: -65 to 150 ℃; (5)Operating Junction Temperature: -40 to 150 ℃; (6)Lead Temperature: 260 ℃; (7)Thermal Impedance: 100 ℃/W; (8)Thermal Impedance: 40 ℃/W.
Features
TOP210PFI features: (1)Auto-restart and cycle by cycle current limiting functions handle both primary and secondary faults; (2)On-chip thermal shutdown with hysteresis protects the entire system against overload.

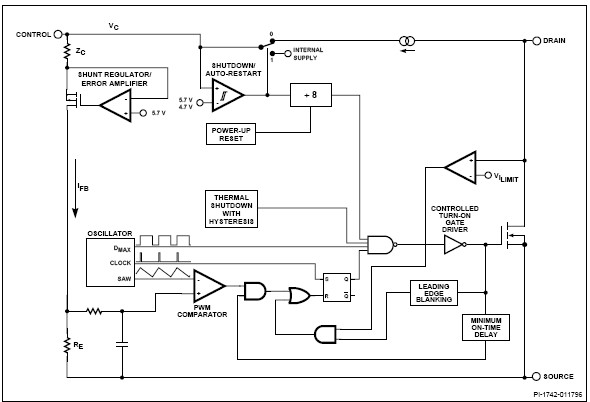

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

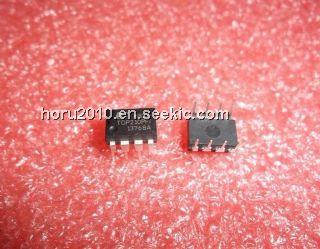

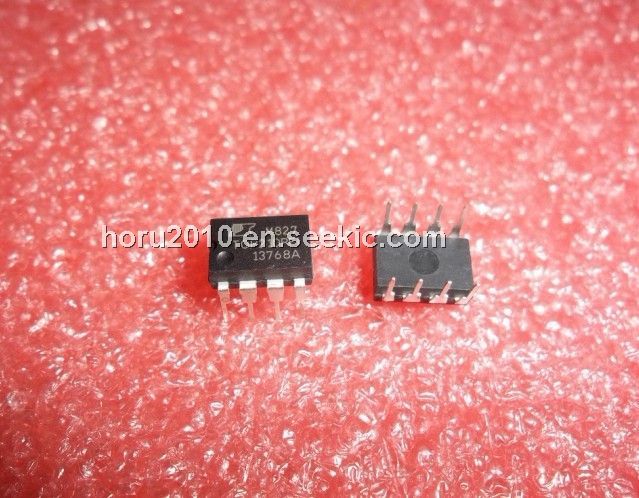

TOP210PFI |
Power Integrations |
AC/DC Switching Converters 5W 85-265 VAC 8W100/115/230 VAC |
Data Sheet |
Negotiable |
|
|||||
