Product Summary

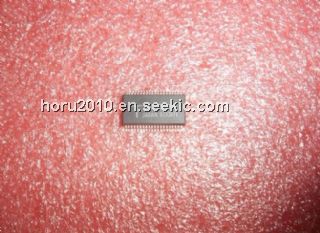

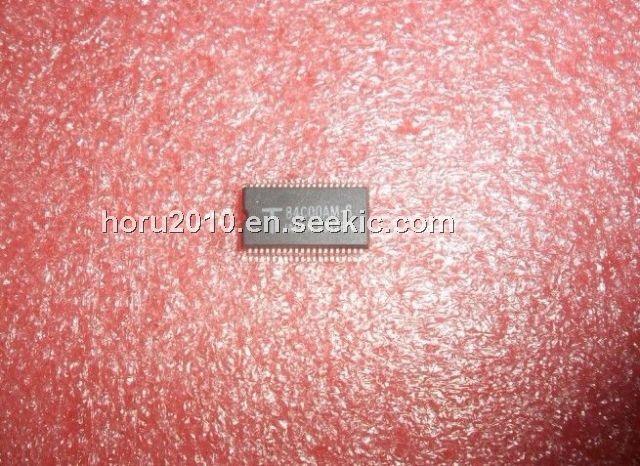

The TMPZ84C00AM-6 is a 8-BIT microprocessor.

Parametrics

TMPZ84C00AM-6 absolute maximum ratings: (1)Supply Voltage: -0.5 to + 7 V; (2)Input Voltage: -0.5 to -VCC + 0.5 V; (3)Power Dissipation: 250 mW; (4)Soldering Temperature (10sec): 260℃; (5)Storage Temperature: -65 to 150℃; (6)Operating Temprature: -40 to 85℃.

Features

TMPZ84C00AM-6 features: (1)Commands compatible with the Zilog Z80 MPU; (2)Low power consumption; (3)DC to 8MHzoperation (at5V±10%); (4)Single 5V power supply (5V ± 10%); (5)Operating temperature (-40℃ to 85℃); (6)Powerful set of 158 instrucitons available; (7)Powerful interrupt function.

Diagrams

TMPZ84C00AM-6 block diagram
