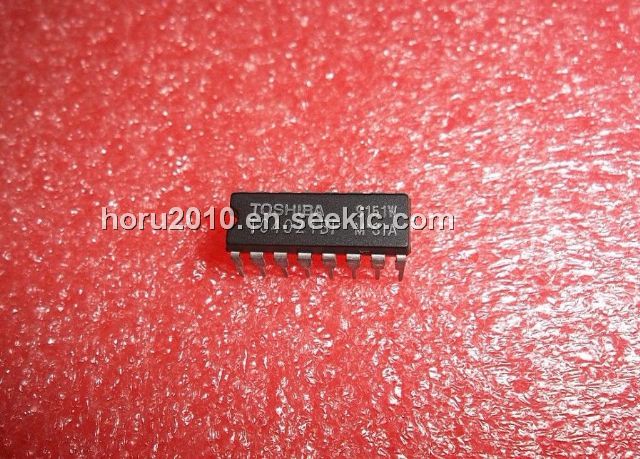

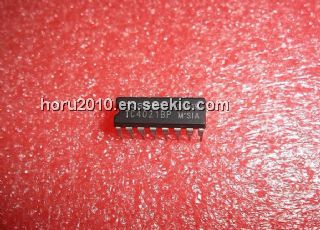

Product Summary
The TC4021BP is an 8 stage parallel in/serial out shift register, which can be used also for serial in /serial out operations. In the case of parallel operation, the data of PARALLEL IN is input to each F/F asynchronously with CLOCK and the output is obtained. In the case of serial operations, each F/F is triggered by rising edge of CLOCK. Switching of PARALLEL operation and SERIAL operation is achieved by P/S CONTROL input. When P/S CONTROL input is "H", PARALLEL operation is designed and when it is "L", SERIAL operation is designed.
Parametrics
TC4021BP absolute maximum ratings: (1)DC supply voltage, VDD: VSS -0.5 to VSS +20V; (2)Input voltage, VIN: VSS -0.5 to VDD +0.5V; (3)Output voltage, VOUT: -0.5 to VDD +0.5V; (4)DC input current, IIN: ±10mA; (5)Power dissipation, PD: 300(DIP)/180(SOIC)mW; (6)Operating temperature range, Topr: -40 to +85℃; (7)Storage temperature range, Tstg: -65 to +150℃.
Features
TC4021BP features: (1)DC supply voltage, VDD: 3 to 18V; (2)Input voltage, Vin: 0 to VDD V.

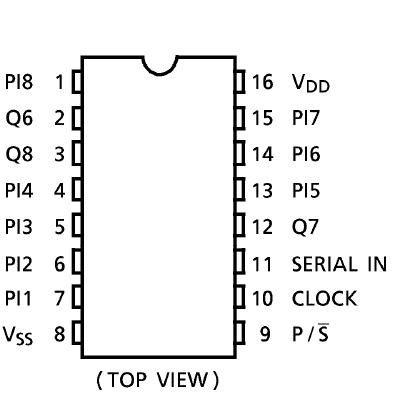

Diagrams
