SG1524

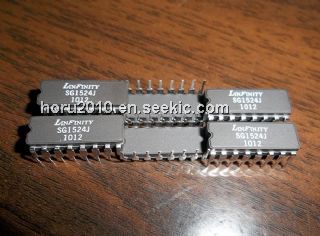

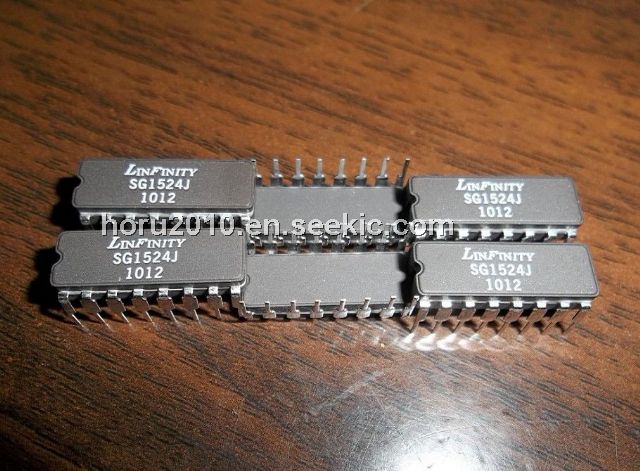

SG1524, monolithic integrated circuit, DIP, 42V, 100mA, linfinity microelectronics inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.35~3.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	3.25 / Piece
10 ~ 1000 :	2.35 / Piece

PartNumber:: SG1524

Brand:: linfinity microelectronics inc - linfinity | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-13

From Other Seller

Part Number:SG1524
US $2.35 - 3.25
Quantity:

piece

Product Summary

The SG1524 is a monolithic integrated circuit which contains all the control circuitry for a regulating power supply inverter or switching regulator. Included in a 16-pin dual-in-line package is the voltage reference, error amplifier, oscillator, pulse width modulator, pulse steering flip-flop, dual alternating output switches and current limiting and shut-down circuitry. The SG1524 can be used for switching regulators of either polarity, transformer coupled DC to DC converters, transformerless voltage doublers and polarity converters, as well as other power applications.

Parametrics

SG1524 absolute maximum ratings: (1)Input Voltage (+VIN): 42V; (2)Collector Voltage: 40V; (3)Logic Inputs: -0.3V to 5.5V; (4)Current Limit Sense Inputs: -0.3V to 0.3V; (5)Output Current (each transistor): 100mA; (6)Reference Load Current: 50mA; (7)Oscillator Charging Current: 5mA; (8)Operating Junction Temperature: Hermetic (J, L Packages): 150℃; (9)Operating Junction Temperature, Plastic (N, D Packages): 150℃; (10)Storage Temperature Range: -65 to 150℃; (11)Lead Temperature (Soldering, 10 seconds): 300℃.

Features

SG1524 features: (1)8V to 40V operation; (2)5V reference; (3)Reference line and load regulation of 0.4%; (4)Reference temperature coefficient < ± 1%; (5)100Hz to 300KHz oscillator range; (6)Excellent external sync capability; (7)Dual 50mA output transistors; (8)Current limit circuitry; (9)Complete PWM power control circuitry; (10)Single ended or push-pull outputs; (11)Total supply current less than 10mA.
