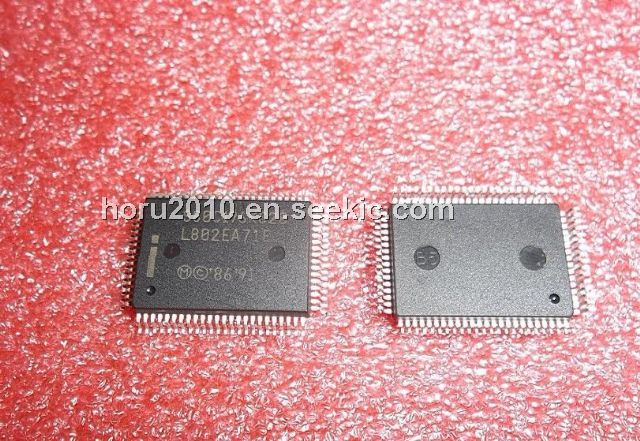

S80C196KC20

S80C196KC20, 16-bit, microcontroller, QFP, 1.5W, 13V, Intel Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.75~4.84 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9 :	4.84 / Piece
10 ~ 100 :	3.75 / Piece

PartNumber:: S80C196KC20

Brand:: Intel Corporation - Intel | Pack: QFP | D/C: 86+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-02

From Other Seller

Part Number:S80C196KC20
US $3.75 - 4.84
Quantity:

piece

Product Summary

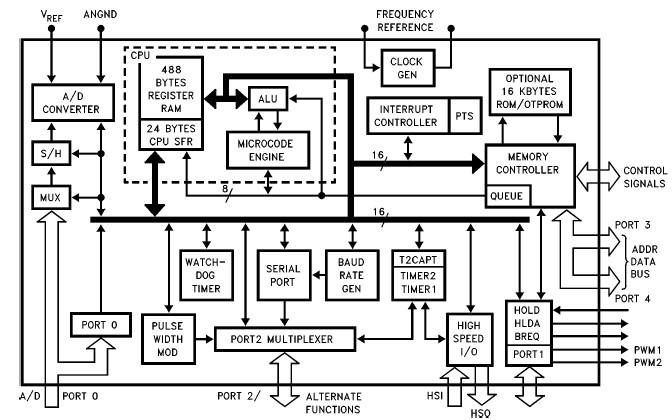

The S80C196KC20 is a 16-bit microcontroller. The S80C196KC20 is an enhanced 80C196KB device with 488 bytes RAM, 16 and 20 MHz operation and an optional 16 Kbytes of ROM/OTPROM. Intel’s CHMOS III process provides a high performance processor along with low power consumption.

Parametrics

S80C196KC20 absolute maximum ratings: (1)Ambient Temperature Under Bias: -55 to 125℃; (2)Storage Temperature: -65 to 150℃; (3)Voltage On Any Pin to VSS: -0.5V to a7.0V(1); (4)Voltage from EA or VPP to VSS or ANGND: 13.00V; (5)Power Dissipation: 1.5W.

Features

S80C196KC20 features: (1)16 and 20 MHz Available; (2)488 Byte Register RAM; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)Peripheral Transaction Server; (6)1.4μs 16 x 16 Multiply (20 MHz); (7)2.4μs 32/16 Divide (20 MHz); (8)Powerdown and Idle Modes; (9)Five 8-Bit I/O Ports; (10)16-Bit Watchdog Timer; (11)Extended Temperature Available; (12)Dynamically Configurable 8-Bit or 16-Bit Buswidth; (13)Full Duplex Serial Port; (14)High Speed I/O Subsystem; (15)16-Bit Timer; (16)16-Bit Up/Down Counter with Capture; (17)3 Pulse-Width-Modulated Outputs; (18)Four 16-Bit Software Timers; (19)8- or 10-Bit A/D Converter with Sample/Hold.
