Product Summary

The RTD2523 is a Flat Panel Display Controller. RTD is designed to connect the interface of digital signal from video decoder. Input data is latched within a capture window defined in registers. The timing scheme designed for input devices are showed in the following diagram.

Parametrics

RTD2523 absolute maximum ratings: (1)Voltage on VDD VVDD: -1 to 4.6 V; (2)Voltage on Input (5V tolerant) VIN: -1 to 5.5 V; (3)Voltage on Output or I/O or NC VIO: -1 to 4.6 V; (4)Electrostatic Discharge VESD: ±2.5 kV; (5)Latch-Up ILA: ±100 mA; (6)Ambient Operating Temperature TA: 0 to 70℃; (7)Storage temperature (plastic) TSTG: -55 to 125℃; (8)Thermal Resistance (Junction to Air) θJA: 18℃/W.

Features

RTD2523 features: (1)Embedded dual DDC support DDC1, DDC2B, DDC/CI ; (2)Zoom scaling up and down ; (3)Embedded Pattern Generator ; (4)No external memory required.; (5)Require only one crystal to generate all timing ; (6)Embedded reset control output ; (7)Embedded crystal output to MICROP ; (8)3 channels 8 bits PWM output, and selectable PWM clock frequency.

Diagrams

RTD2523 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

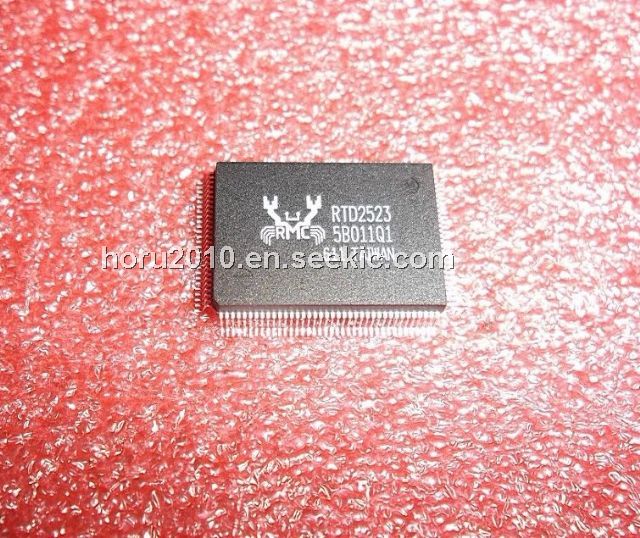

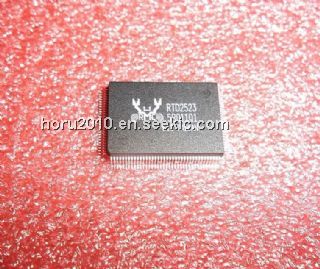

RTD2523
RTD2523
Other

Data Sheet
Negotiable
RTD2523B
RTD2523B
Other

Data Sheet
Negotiable
