Product Summary
The PS392C is an improved, quad, single-pole singlethrow (SPST) analog switches designed to operate with ±3V to ±8V power supplies or a single 3V to 15V supply. The PS391 has four normally closed (NC) switches, the PS392 has four normally open (NO) switches. The PS393 has two NO and two NC switches. The device offers low leakage (<2pA typ) and fast switching speeds (tON <130ns). Power consumption is less than 1μA, ideal for battery-powered equipment. The applications of the PS392C include Instrumentation, Battery Powered Systems, Audio Switching, ±5V Data Acquisition Systems, Sample-and-Hold Circuits, Telecommunications Systems.
Parametrics
PS392C absolute maximum ratings: (1)Voltages Referenced to V- V+: -0.3V to +17V; (2)VIN, VCOM, VNC, VNO: (V-)- 2V to (V+) +2V or 30mA, whichever occurs first; (3)Current (any terminal): 30mA; (4)Peak Current, COM, NO, NC (pulsed at 1ms, 10% duty cycle): 100mA; (5)ESD per Method 3015.7: >2000V.
Features
PS392C features: (1)Low On-Resistance, (16.ohms typ) Minimizes Distortion and Error Voltages; (2)On-Resistance Match Between Channels, <2 ohms; (3)Guaranteed On-Resistance Flatness, <4 ohms; (4)Low Charge Injection, 3pC typ.; (5)Improved Leakage Over Temperature, <2.5nA at +85oC; (6)ESD Rating >2000V per Method 3015.7; (7)Single-Supply Operation (+3V to +15V); (8)Bipolar-Supply Operation (±3V to ±8V); (9)Low Power Consumption, <1μA; (10)TTL/CMOS Compatible.

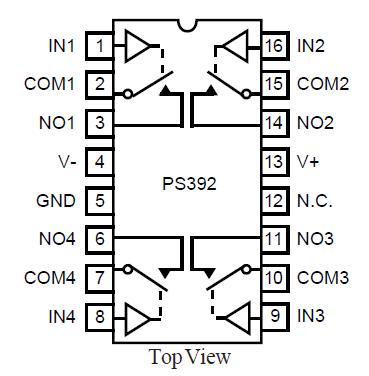

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS392CPE |
|
IC SWITCH QUAD SPST 16DIP |
Data Sheet |
Negotiable |
|
||||||||||
|
PS392CSE |
|
IC SWITCH QUAD SPST 16SOIC |
Data Sheet |
Negotiable |
|
||||||||||
|
PS392CSEE |
Pericom |
Analog Switch ICs Quad SPST 17V Analog Switch |
Data Sheet |
|
|
||||||||||
|
PS392CSEEX |
Pericom |
Analog Switch ICs Quad SPST 17V Analog Switch |
Data Sheet |
|
|
||||||||||
