Product Summary
The OB2268AP is a single bus buffer gate. It is fully specified for partial-power-down applications using Ioff . The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Parametrics
OB2268AP absolute maximum ratings: (1)supply voltage range: -0.5 to 6.5V; (2)input voltage range: -0.5 to 6.5V; (3)input clamp current: -50mA; (4)continuous output current: ±50mA; (5)continuous current through VCC or GND: ±100mA.
Features
OB2268AP features: (1)available in the Texas instruments nanofree package; (2)supports 5V VCC operation; (3)inputs accept voltages to 5.5V; (4)max tpd of 3.7ns at 3.3V; (5)low power consumption, 10μA max ICC; (6)Ioff supports partial-power-down mode operation.

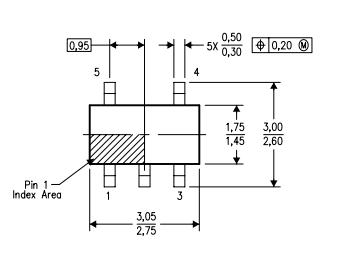

Diagrams
