Product Summary

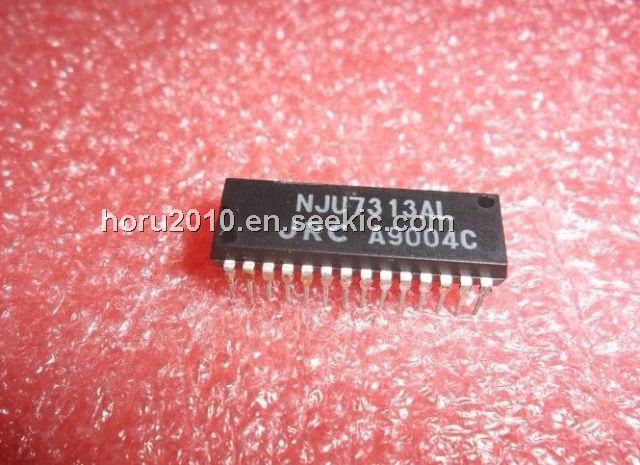

The NJU7313AL is an Analog function switch. The NJU7313A is a dual 4-channel and quad 2-channel analog function switch, especially suitable for input selector of audio equipments. The high break down voltage analog switch controlled by 14-bit serial data based on logic operating voltage (5V) can ON and OFF of±15V signal. The analog switch is realized superior Linearity of on-resistance in al I voltage range, low distortion and wide dynamic range. Furthermore, the both of single and dual power supply application provide easy designing.
Parametrics
NJU7313AL absolute maximum ratings: (1)Supply Voltage : +17 V; (2)Input Voltage : Vss-0.3 to VDD+0.3 V; (3)Power Dissipation : 300 mW; (4)Operating Temperature : -30 to +75 ℃; (5)Storage Temperature : -40 to +125 ℃.
Features
NJU7313AL features: (1)Analog switch: dual 3 channel and quad 2 channel; (2)High Break Down Voltage : ±15V; (3)Low Distortion THD: 0.002% (typ); (4)Superior Linearity of ON Resistance; (5)Serial Data Control; (6)Package Outline SDIP 28 / DMP 30; (7)C-MOS Technology.

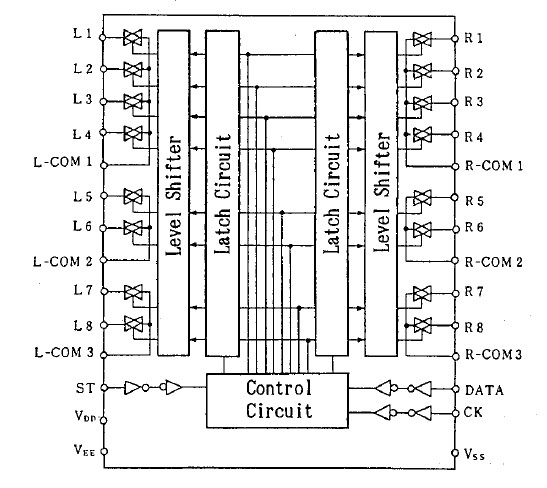

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJU7313AL |
NJR |
Analog Switch ICs CMOS Analog Function |
Data Sheet |
Negotiable |
|
||||||||||||
