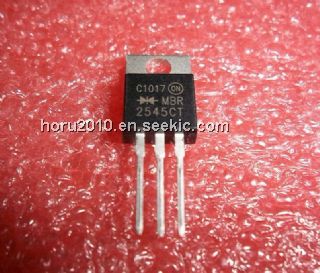

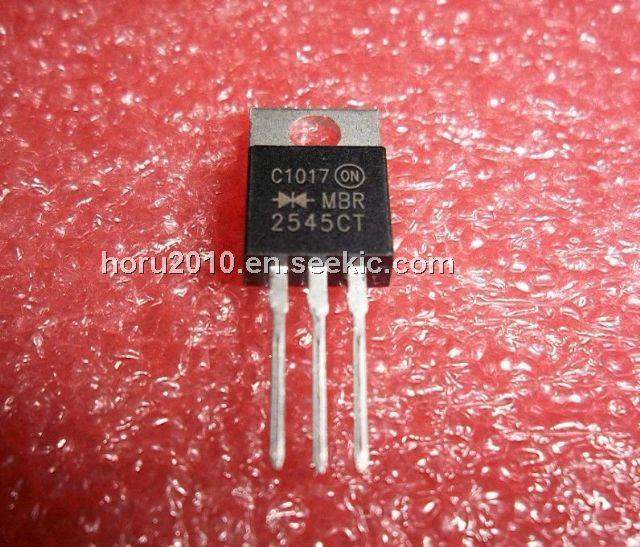

MBR2545CT

MBR2545CT, SWITCHMODE power rectifier, TO, 30A, 45V, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.24~0.24 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 99 :	0.24 / Piece

PartNumber:: MBR2545CT

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 11+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-03

From Other Seller

Part Number:MBR2545CT
US $0.24 - 0.24
Quantity:

piece

Product Summary

The MBR2545CT is a SWITCHMODE power rectifier. The MBR2545CT uses the Schottky Barrier principle with a platinum barrier metal.

Parametrics

MBR2545CT absolute maximum ratings: (1)Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage, VRRM, VRWM, VR: 45 V; (2)Average Rectified Forward Current, (Rated VR, TC = 160℃), IF(AV): 30A; (3)Peak Repetitive Forward Current per Diode Leg (Square Wave, 20 kHz, TC = 163℃), IFRM: 30A; (4)Non-repetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz), IFSM: 150 A; (5)Peak Repetitive Reverse Surge Current (2.0μs, 1.0 kHz), IRRM: 1.0A; (6)Storage Temperature range, Tstg: -65 to +175℃; (7)Operating Junction Temperature, TJ: -65 to +175℃; (8)Voltage Rate of Change (Rated VR), dv/dt: 10,000 V/μs; (9)ESD Ratings: Machine Model = C, ESD: >400V; Ratings: Human Body Model = 3B, ESD: >8000V.

Features

MBR2545CT features: (1)Guardring for Stress Protection; (2)Low Forward Voltage; (3)175℃ Operating Junction Temperature; (4)Pb-Free Packages are Available.
