Product Summary
The MAX708S is a microprocessor (μP) supervisory circuit. The device reduces the complexity and number of components required to monitor +3V power-supply levels in +3V to +5V μP systems. The MAX708S significantly improves system reliability and accuracy compared to separate ICs or discrete components. The applications of the MAX708S include Computers, Embedded System, Battery Powered Equipment and Critical μP Power Supply Monitor.
Parametrics
MAX708S absolute maximum ratings: (1)Terminal Voltage (with respect to GND):VCC: -0.3V to +6V, All Other Inputs: -0.3V to (VCC + 0.3V); (2)Input Current:VCC:20mA, GND: 20mA; (3)Output Current (all outputs): 20mA; (4)Continuous Power Dissipation (TA = +70℃): 470.6mW; (5)Operating Temperature Range: -40℃ to +85℃; (6)Junction Temperature: +150℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
MAX708S features: (1)μMAX Package, Small 8-Pin SO; (2)Precision Supply-Voltage Monitors 2.63V; (3)200ms Reset Time Delay; (4)Debounced TTL/CMOS-Compatible Manual Reset Input; (5)100μA Quiescent Current; (6)Watchdog Timer: 1.6s Timeout; (7)Reset Output Signal:Active-High and Active-Low; (8)Voltage Monitor for Power-Fail or Low-Battery Warning; (9)8-Pin Surface-Mount Package; (10)Guaranteed RESET Assertion to VCC = 1V.

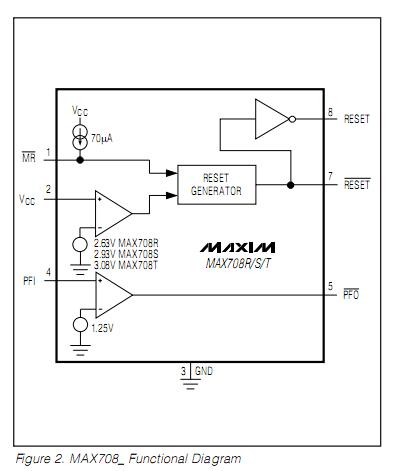

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX708SCSA |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX708SCSA+ |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX708SCSA+T |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX708SCSA-T |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX708SCUA+ |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX708SEPA |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX708SESA |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX708SESA+ |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
||||||||||||
