Product Summary
The M30626FHPFP is a single-chip 16-bit CMOS microcomputer. It operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, it is capable of executing instructions at high speed. In addition, the M30626FHPFP contains a multiplier and DMAC which combined with fast instruction processing capability, makes it suitable for control of various OA, communication, and industrial equipment which requires high-speed arithmetic/logic operations. The applications of the M30626FHPFP are Audio, cameras, television, home appliance, office/communications/portable/industrial equipment, automobile, etc.
Parametrics
M30626FHPFP absolute maximum ratings: (1)Supply Voltage:-0.3V to 6.5V; (2)Supply Voltage:-0.3V to VCC+0.1V; (3)Analog Supply Voltage:-0.3V to 6.5V; (4)Input Voltage:-0.3V to VCC+0.3V; (5)Output Voltage:-0.3V to VCC+0.3V; (6)Power Dissipation:300mW; (7)Storage Temperature:-65 to 150℃.
Features
M30626FHPFP features: (1)Program Memory Size:384KB (384K x 8); (2)RAM Size:31K x 8; (3)Number of I /O:85; (4)Package / Case:100-BQFP; (5)Speed:24MHz; (6)Oscillator Type:Internal; (7)Packaging:Tray; (8)Program Memory Type:FLASH; (9)Core Processor:M16C/60; (10)Data Converters:A/D 26x10b; D/A 2x8b; (11)Core Size:16-Bit; (12)Operating Temperature:-40℃ to 85℃; (13)Peripherals:DMA, WDT; (14)Voltage - Supply (Vcc/Vdd):2.7 V to 5.5 V; (15)Lead Free Status:Lead Free; (16)RoHS Status:RoHS Compliant.

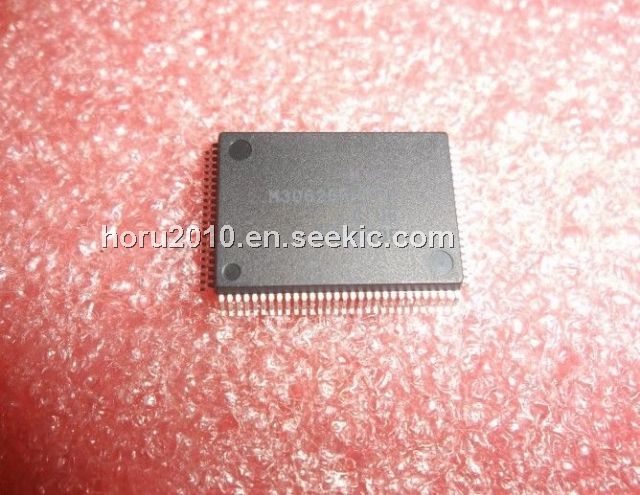

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M30626FHPFP#D3C |
IC M16C MCU FLASH 384K 100-QFP |
Data Sheet |
|
|
||||||||||||||||||||||||
M30626FHPFP#D5C |
IC M16C MCU FLASH 384K 100-QFP |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||||
M30626FHPFP#U3C |
IC M16C MCU FLASH 384K 100QFP |
Data Sheet |
|
|
||||||||||||||||||||||||
M30626FHPFP#U5C |
IC M16C MCU FLASH 384K 100QFP |
Data Sheet |
|
|
||||||||||||||||||||||||
M30626FHPFP#D7C |
Renesas Technology America |
MCU 3/5V 384K I-TEMP 100-QFP |
Data Sheet |
Negotiable |
|
|||||||||||||||||||||||
M30626FHPFP#D9C |
Renesas Technology America |
MCU 3/5V 384K 100-QFP |
Data Sheet |
Negotiable |
|
|||||||||||||||||||||||
M30626FHPFP#U7C |
IC M16C MCU FLASH 384K 100QFP |
Data Sheet |
|
|
||||||||||||||||||||||||
M30626FHPFP#U9C |
IC M16C MCU FLASH 384K 100QFP |
Data Sheet |
|
|
