Product Summary
The LT3461AES6 is a general purpose fixed frequency current mode step-up DC/DC converter. The device features an integrated Schottky and a low VCESAT switch allowing a small converter footprint and lower parts cost. The LT3461AES6 switches at 3MHz. These high switching frequencies enable the use of tiny, low cost and low height capacitors and inductors. The applications of the LT3461AES6 include Digital Cameras, CCD Bias Supply, XDSL Power Supply, TFT-LCD Bias Supply, Local 5V or 12V Supply, Medical Diagnostic Equipment, Battery Backup.
Parametrics
LT3461AES6 absolute maximum ratings: (1)Input Voltage (VIN): 16V; (2)VOUT, SW Voltage: 40V; (3)FB Voltage: 5V; (4)SHDN Voltage: 16V; (5)Operating Ambient Temperature Range (Note 2): -40℃ to 85℃; (6)Maximum Junction Temperature: 125℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT3461AES6 features: (1)Integrated Schottky Rectifier; (2)Fixed Frequency 1.3MHz/3MHz Operation; (3)High Output Voltage: Up to 38V; (4)Low VCESAT Switch: 260mV at 250mA; (5)12V at 70mA from 5V Input; (6)5V at 115mA from 3.3V Input; (7)Wide Input Range: 2.5V to 16V; (8)Uses Small Surface Mount Components; (9)Low Shutdown Current: <1μA; (10)Soft-Start; (11)Low Profile (1mm) SOT-23 (ThinSOTTM) Package.

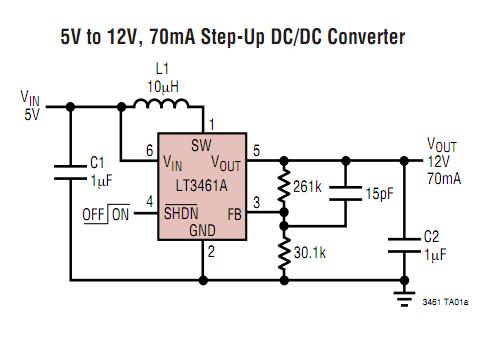

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT3461AES6#TR |
|
IC REG BOOST ADJ 0.25A TSOT23-6 |
Data Sheet |
|
|
||||||||||
|
LT3461AES6#TRM |
|
IC REG BOOST ADJ 0.25A TSOT23-6 |
Data Sheet |
Negotiable |
|
||||||||||
|
LT3461AES6#TRMPBF |
|
IC REG BOOST ADJ 0.25A TSOT23-6 |
Data Sheet |
|
|
||||||||||
|
LT3461AES6#TRPBF |
|
IC REG BOOST ADJ 0.25A TSOT23-6 |
Data Sheet |
|
|
||||||||||
