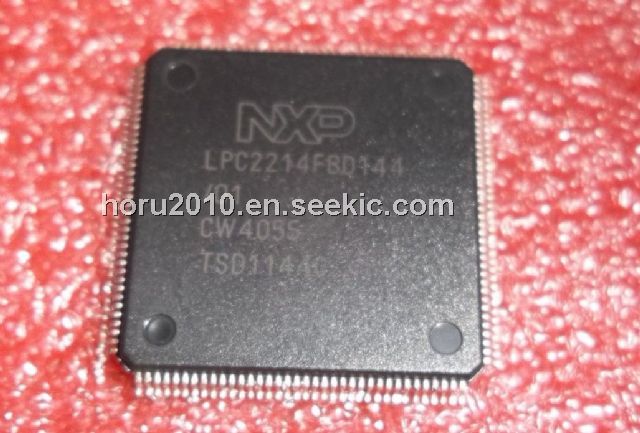

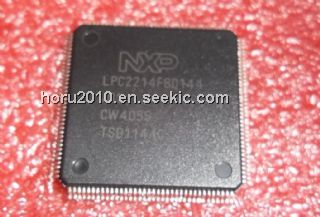

Product Summary

The LPC2214FBD144 is an ARM microcontroller. The LPC2214FBD144 is based on a 16/32 bit ARM7TDMI-S™ CPU with real-time emulation and embedded trace support, together with 128/256 kilobytes (kB) of embedded high speed flash memory. A 128-bit wide memory interface and unique accelerator architecture enable 32-bit code execution at maximum clock rate. For critical code size applications, the alternative 16-bit Thumb® Mode reduces code by more than 30 % with minimal performance penalty.

Parametrics

LPC2214FBD144 absolute maximum ratings: (1)Supply voltage, internal rail: -0.5 to +2.5 V; (2)Supply voltage, external rail: -0.5 to +3.6 V; (3)Analog 3.3 V pad supply voltage: -0.5 to 4.6 V; (4)Analog input voltage on A/D related pins: -0.5 to 5.1 V; (5)DC input voltage, 5 V tolerant I/O pins: -0.5 to 6.0 V; (6)DC input voltage, other I/O pins: -0.5 to V3 + 0.5 V; (7)DC supply current per supply pin[5]: 100 mA; (8)DC ground current per ground pin: 100 mA; (9)Storage temperature[6]: -65 to 150 ℃.

Features

LPC2214FBD144 features: (1)16/32-bit ARM7TDMI-S microcontroller in a LQFP144 package; (2)16 kB on-chip Static RAM and 128/256 kB on-chip Flash Program Memory. 128-bit wide interface/accelerator enables high speed 60 MHz operation; (3)In-System Programming (ISP) and In-Application Programming (IAP) via on-chip boot-loader software. Flash programming takes 1 ms per 512 byte line. Single sector or full chip erase takes 400 ms; (4)EmbeddedICE-RT and Embedded Trace interfaces offer real-time debugging with the on-chip RealMonitor. software as well as high speed real-time tracing of instruction execution; (5)Eight channel 10-bit A/D converter with conversion time as low as 2.44 ms; (6)Two 32-bit timers (with 4 capture and 4 compare channels), PWM unit (6 outputs), Real Time Clock and Watchdog; (7)Multiple serial interfaces including two UARTs (16C550), Fast I2C (400 kbits/s) and two SPIs; (8)Vectored Interrupt Controller with configurable priorities and vector addresses; (9)Configurable external memory interface with up to four banks, each up to 16 Mb and 8/16/32 bit data width; (10)Up to 112 general purpose I/O pins (5 V tolerant). Up to 9 edge or level sensitive external interrupt pins available.

Diagrams

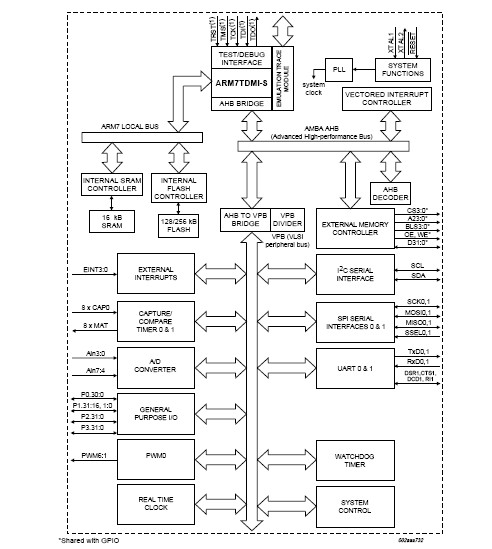

LPC2214FBD144 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LPC2214FBD144,551
LPC2214FBD144,551


IC ARM7 MCU FLASH 256K 144-LQFP

Data Sheet

Negotiable
LPC2214FBD144/01,5
LPC2214FBD144/01,5

NXP Semiconductors

ARM Microcontrollers (MCU) ARM7 256KF/16KR/ADC

Data Sheet

0-1: $6.82
1-25: $6.11
25-100: $5.62
100-250: $5.41
LPC2214FBD144-S
LPC2214FBD144-S

NXP Semiconductors

ARM Microcontrollers (MCU) ARM7 MCU FLASH 256K

Data Sheet

Negotiable
