Product Summary
The LMS700KF is a differential bus/line transceiver designed for bidirectional data communication on multipoint bus transmission lines. It is designed for balanced transmission lines. It meets ANSI Standards TIA/EIA RS422-B, TIA/EIA RS485-A and ITU recommendation V.11 and X.27. The LMS700KF combines a TRI-STATE. differential line driver and differential input receiver, both of which operate from a single 5.0V power supply. The driver and receiver have an active high and active low enable, respectively, that can be externally connected to function as a direction control. The applications of the LMS700KF include Network hubs, bridges, and routers, Point of sales equipment (ATM, barcode readers), Industrial programmable logic controllers, High speed parallel and serial applications, Multipoint applications with noisy environment.
Parametrics
LMS700KF absolute maximum ratings: (1)Supply Voltage, VCC: 7V; (2)Voltage Range at Any Bus Terminal: -7V to 12V; (3)Input Voltage, VIN (DI, DE, or RE): -0.3V to VCC + 0.3V; (4)Package Thermal Impedance, θJA: 125C/W; (5)Junction Temperature: 150℃; (6)Operating Free-Air Temperature Range, TA: 0℃ to 70℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Soldering Information Infrared or Convection (20 sec.): 235℃; (9)ESD Rating: 2KV.
Features
LMS700KF features: (1)Bidirectional transceiver; (2)Meet ANSI standard RS-485-A and RS-422-B; (3)Low skew, 2ns; (4)Low supply current, 8mA (max.); (5)Wide input and output voltage range; (6)High output drive capacity ±60mA; (7)Thermal shutdown protection; (8)Open circuit fail-safe for receiver; (9)Receiver input sensitivity ±200mV; (10)Receiver input hysteresis 10mV (min.); (11)Single supply voltage operation, 5V; (12)Glitch free power-up and power-down operation; (13)Data rates up to 35 Mbaud; (14)Pin and functional compatible with TI’s SN75ALS176A; (15)8-Pin SOIC.

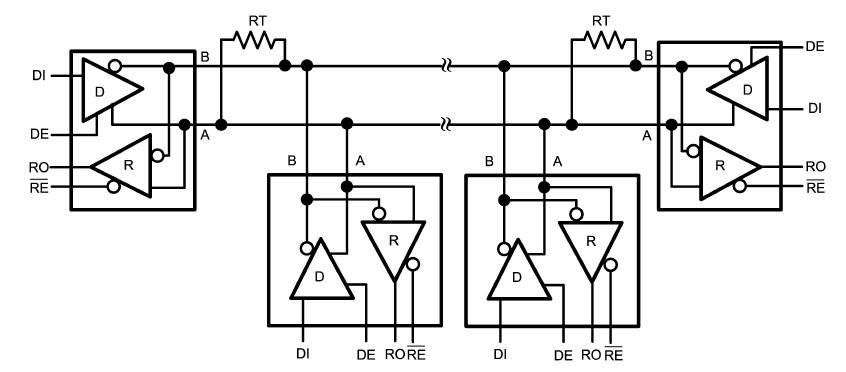

Diagrams
