Product Summary

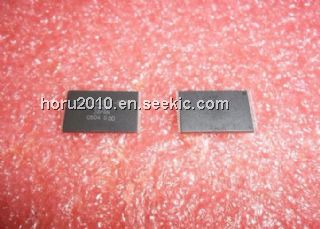

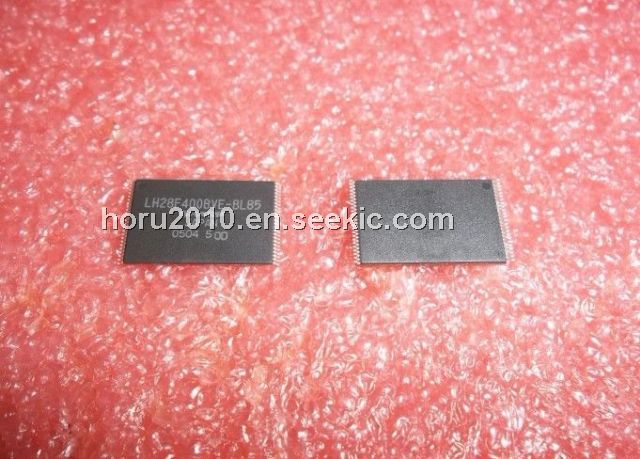

The LH28F400BVE-BL85 is a 4M Flash Memory.

Parametrics

LH28F400BVE-BL85 absolute maximum ratings: (1)Operating Temperature ; (2)During Read, Block Erase and Word/Byte Write: 0℃ to +70℃; (3)Storage Temperature: -65℃ to +125℃ ; (4)Voltage On Any Pin (except Vee Vpp , and RP#): -0.5V to +7.0V ; (5)VCC Supply Voltage: -0.2V to +7.0V; (6)RP# Voltage: -0.5V to +14.0V; (7)Output Short Circuit Current: 100mA.

Features

LH28F400BVE-BL85 features: (1)User-Configurable x8 or x16 Operation; (2)SRAM-Compatible Write Interface; (3)CMOS Process (P-type silicon substrate); (4)Not designed or rated as radiation hardened.

Diagrams

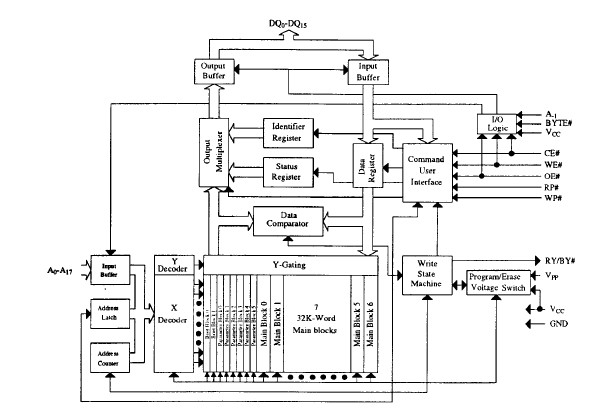

LH28F400BVE-BL85 block diagram
