IR2130PBF

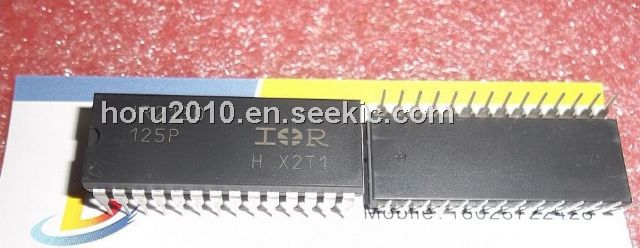

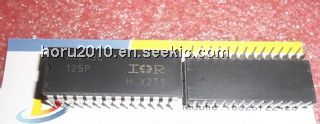

IR2130PBF, 3-phase bridge driver, 2.5V, PLCC, 200mA, 0.8us

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.95~3.28 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 99 :	3.28 / Piece
100 ~ 1000 :	2.95 / Piece

PartNumber:: IR2130PBF

Brand:: International Rectifier - IR | Pack: | D/C: 11+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Lucy's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:IR2130PBF
US $2.95 - 3.28
IR2130PBF

US $1.00 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IR2130PBF is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 2.5V logic.

Parametrics

IR2130PBF absolute maximum ratings: (1)High Side Floating Supply Voltage: -0.3 to 625 V; (2)High Side Floating Offset Voltage: VB1,2,3 - 25 to VB1,2,3 + 0.3 V; (3)High Side Floating Output Voltage: VS1,2,3 - 0.3 to VB1,2,3 + 0.3 V; (4)Low Side and Logic Fixed Supply Voltage: -0.3 to 25 V; (5)Logic Ground: VCC - 25 to VCC + 0.3 V; (6)Low Side Output Voltage: -0.3 to VCC + 0.3 V; (7)Logic Input Voltage (HIN1,2,3, LIN1,2,3 & ITRIP): VSS - 0.3 to (VSS + 15) or (VCC + 0.3), whichever is lower; (8)FAULT Output Voltage: VSS - 0.3 to VCC + 0.3 V; (9)Junction Temperature: 150 ℃; (10)Storage Temperature: -55 to 150 ℃; (11)Lead Temperature (Soldering, 10 seconds): 300 ℃.

Features

IR2130PBF features: (1)Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune; (2)Gate drive supply range from 10 to 20V; (3)Undervoltage lockout for all channels; (4)Over-current shutdown turns off all six drivers; (5)Independent half-bridge drivers; (6)Matched propagation delay for all channels; (7)2.5V logic compatible; (8)Outputs out of phase with inputs; (9)Cross-conduction prevention logic; (10)Also available LEAD-FREE.
