Product Summary

The FDS9435A is a P-Channel MOSFET. The FDS9435A is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process. It has been optimized for power management applications requiring a wide range of gave drive voltage ratings (4.5V - 25V). The applications of the FDS9435A include Power management, Load switch, Battery protection.

Parametrics

FDS9435A absolute maximum ratings: (1)Drain-Source Voltage: -30 V; (2)Gate-Source Voltage: ±25 V; (3)Drain Current: Continuous: -5.3 A, Pulsed: -50 A; (4)Power Dissipation for Single Operation PD: 2.5 W; (Note 1b): 1.2W; (Note 1c): 1W; (5)Operating and Storage Junction Temperature Range: -55 to +150 ℃.

Features

FDS9435A features: (1)–5.3 A, –30 V. RDS(ON) = 50 mW @ VGS = –10 V RDS(ON) = 80 mW @ VGS = –4.5 V; (2)Low gate charge; (3)Fast switching speed; (4)High performance trench technology for extremely low RDS(ON); (5)High power and current handling capability.

Diagrams

FDS9435A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

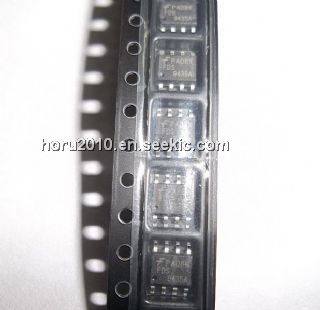

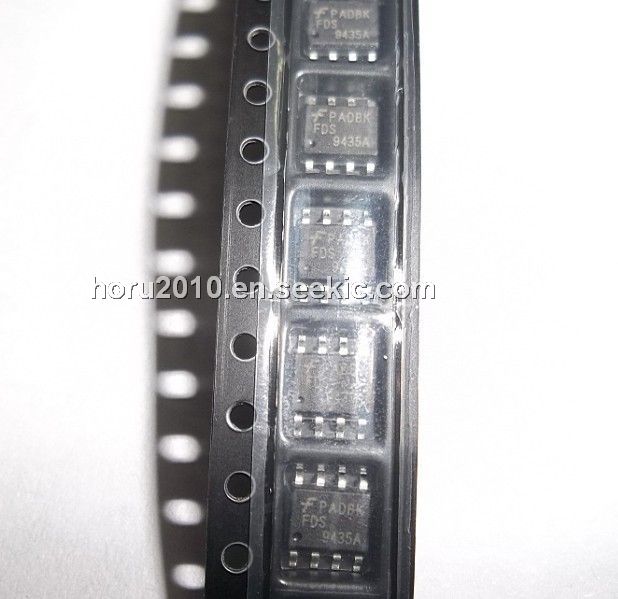

FDS9435A
FDS9435A
Fairchild Semiconductor
MOSFET SO-8 SGL P-CH -30V
Data Sheet
0-1: $0.37
1-25: $0.32
25-100: $0.25
100-250: $0.22
FDS9435A_Q
FDS9435A_Q
Fairchild Semiconductor
MOSFET SO-8 SGL P-CH -30V
Data Sheet
Negotiable
