Product Summary

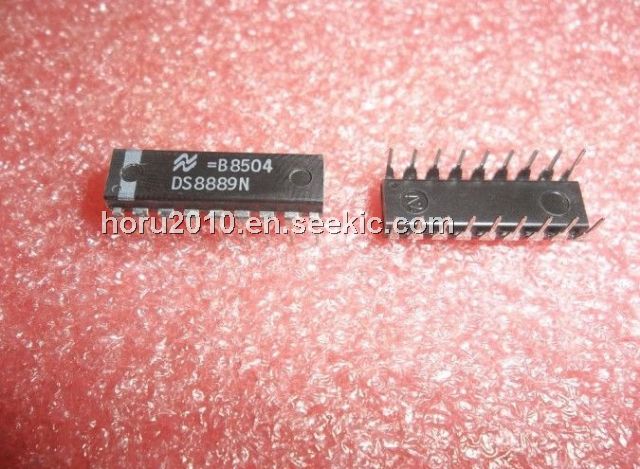

The DS8889N is an 8-segment high voltage cathode driver. It is designed to drive the individual anodes of a 7-segment high voltage gas discharge panel in a time multiplexed fashion.

Parametrics

DS8889N absolute maximum ratings: (1)supply voltage: -60V; (2)input voltage: 35V; (3)storage temperature: -65 to +150°C; (4)maximum power dissipation: 1436mW; (5)lead temperature: 300°C.

Features

DS8889N features: (1)versatile circuits for a wide range of display applications; (2)high breakdown voltages; (3)low power dissipation.

Diagrams

DS8889N package dimensions
