Product Summary

The DS1809Z-010+ is a nonvolatile digitally controlled potentiometer that provides 64 uniform wiper positions over the entire resistor range; including the high-end and low-end terminals of the device. The DS1809Z-010+ is a low power, low voltage device capable of operating from power supplies of +2.7V to +5.5V. The device is ideal for low-power, portable, or battery powered applications. Wiper position is maintained in the absence of power. This is accomplished via the use of an EEPROM cell array. The device provides for two storage methods, which include an auto-store capability and a command-initiated storage function.

Parametrics

DS1809Z-010+ absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -1.0V to +7.0V; (2)Operating Temperature: -40℃ to +85℃; industrial; (3)Storage Temperature: -55℃ to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1809Z-010+ features: (1)64-position linear taper; (2)Two nonvolatile wiper storage options; (3)Operates from +2.7 to +5.5-volt supplies; (4)Operating Temperature Range: - Industrial: -40℃ to +85℃; (5)Electronic interface provides either digital or pushbutton control; (6)Low-cost alternative to mechanical solutions; (7)Standard Resistance Values.

Diagrams

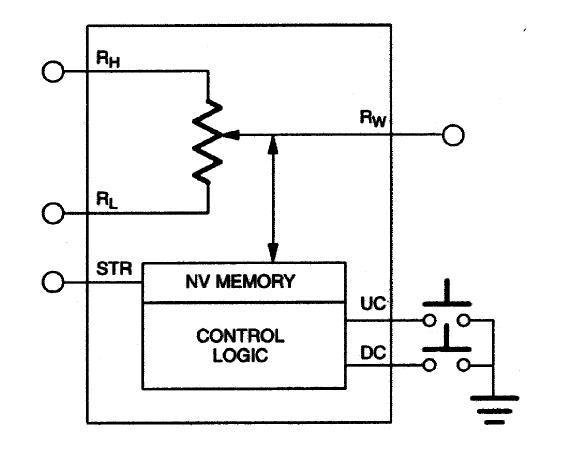

DS1809Z-010+ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS1809Z-010+
DS1809Z-010+
Maxim Integrated Products
Digital Potentiometer ICs Dallastat
Data Sheet
0-1: $2.02
1-25: $1.36
25-50: $0.98
50-100: $0.97
