Product Summary

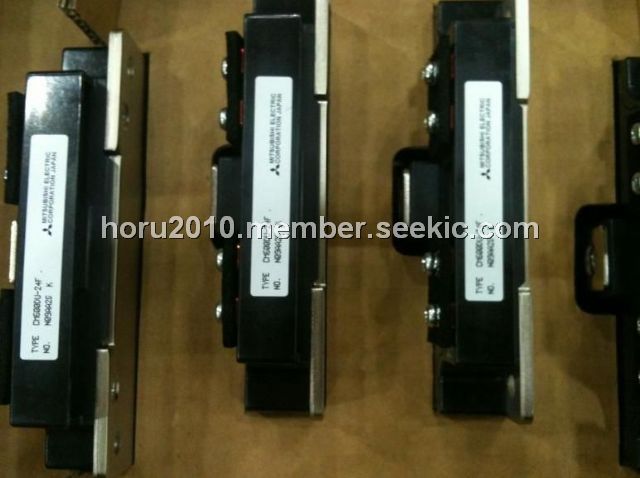

Powerex IGBTMOD Module CM600DU-24F is designed for use in switching applications. The CM600DU-24F consists of two IGBT Transistors in a half bridge configuration with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Parametrics

CM600DU-24F absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature Tstg -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20Volts; (5)Collector Current (Tc = 25℃), IC: 600 Amperes; (6)Peak Collector Current, ICM: 1200Amperes; (7)Emitter Current(Tc = 25℃), IE: 600Amperes; (8)Peak Emitter Current, IEM: 1200Amperes; (9)Maximum Collector Dissipation (Tc = 25℃, Tj ≤ 150℃), Pc: 1540Watts.

Features

CM600DU-24F features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)Isolated Baseplate for Easy Heat Sinking.

Diagrams

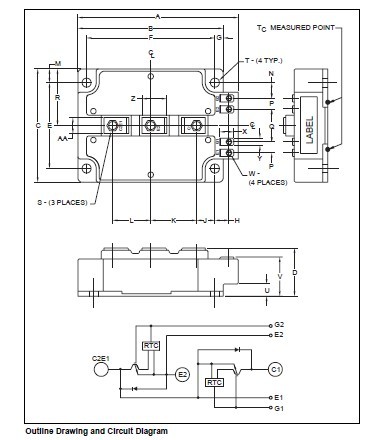

CM600DU-24F Outline Drawing and Circuit Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM600DU-24F
CM600DU-24F


IGBT MOD DUAL 1200V 600A F SER

Data Sheet

0-1: $262.71
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM600DU-24F
CM600DU-24F


IGBT MOD DUAL 1200V 600A F SER

Data Sheet

0-1: $262.71
CM600DU-24NF
CM600DU-24NF


IGBT MOD DUAL 1200V 600A NF SER

Data Sheet

0-1: $252.81
1-10: $243.45
10-100: $234.08
100-250: $230.34
250-500: $224.72
CM600DU-24NFH
CM600DU-24NFH


IGBT MOD DUAL 1200V 600A NFH SER

Data Sheet

0-1: $218.22
CM600DU-5F
CM600DU-5F


IGBT MOD DUAL 250V 600A F SER

Data Sheet

0-1: $211.93
CM600DY-12NF
CM600DY-12NF


IGBT MOD DUAL 600V 600A NF SER

Data Sheet

0-1: $152.36
1-10: $145.01
10-100: $136.60
100-250: $134.50
250-500: $131.35
500-1000: $126.09
CM600DY-24A
CM600DY-24A


IGBT MOD DUAL 1200V 600A A SER

Data Sheet

0-1: $203.81
1-10: $193.98
10-100: $182.73
100-250: $179.92
250-500: $175.70
500-1000: $168.67
