CC2531

Product Summary

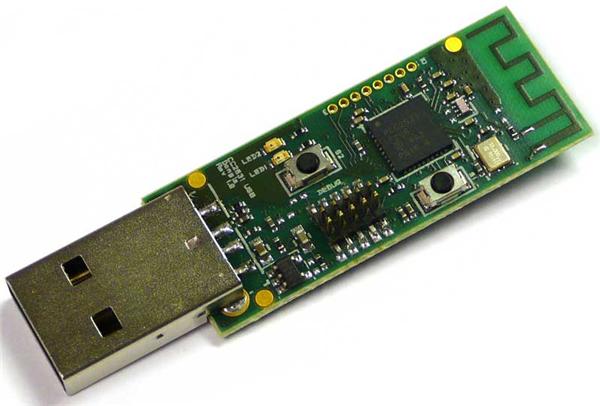

The CC2531 is an USB enabled true system-on-chip (SoC) solution for IEEE 802.15.4, Zigbee and RF4CE applications. It enables USB dongles or USB upgradable network nodes to be built with low total bill-of-material costs. The CC2531 combines the performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2531 has various operating modes, making it suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption. Source code for USB HID and CDC libraries and examples are downloadable from the CC2531 product page on www.ti.com . The applications of the CC2531 include USB Upgradable 2.4-GHz IEEE 802.15.4 Systems, RF4CE Remote Control Target for TV or STB, PC Peripherals, ZigBee Systems, Home/Building Automation, Lighting Systems, Industrial Control and Monitoring, Low-Power Wireless Sensor Networks, Consumer Electronics and Health Care.

Parametrics

CC2531 absolute maximum ratings: (1)Supply voltage All supply pins must have the same voltage: -0.3 to 3.9 V; (2)Voltage on any digital pin: -0.3 to VDD + 0.3V; (3)Input RF level: 10 dBm; (4)Storage temperature range: -40 to 125℃; (5)ESD, All pads, according to human-body model, JEDEC STD 22, method A114: 2 kV; According to charged-device model, JEDEC STD 22, method C101: 500 V.

Features

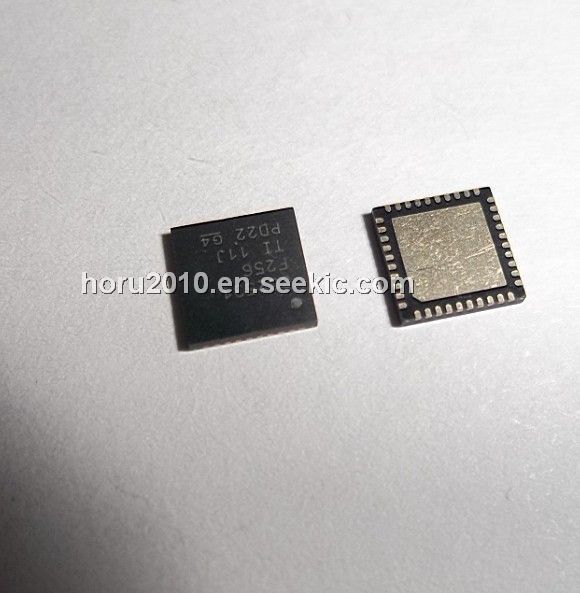

CC2531 features: (1)2.4-GHz IEEE 802.15.4 Compliant RF Transceiver; (2)Excellent Receiver Sensitivity and Robustness to Interference; (3)Programmable Output Power Up to 4.5 dBm; (4)Few External Components; (5)Only a Single Crystal Needed for Mesh Network Systems; (6)6-mm × 6-mm QFN40 Package; (7)Suitable for Systems Targeting Compliance; (8)Powerful Five-Channel DMA; (9)IEEE 802.15.4 MAC Timer, General-Purpose Timers (One 16-Bit, Two 8-Bit); (10)IR Generation Circuitry; (11)32-kHz Sleep Timer With Capture; (12)CSMA/CA Hardware Support; (13)Accurate Digital RSSI/LQI Support; (14)Battery Monitor and Temperature Sensor; (15)12-Bit ADC With Eight Channels and Configurable Resolution; (16)AES Security Coprocessor; (17)Two Powerful USARTs With Support for Several Serial Protocols; (18)21 General-Purpose I/O Pins (19 × 4 mA, 2 × 20 mA); (19)Watchdog Timer.

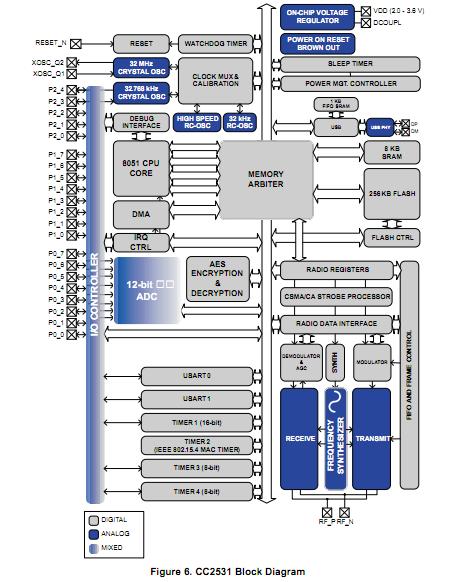

Diagrams
