Product Summary

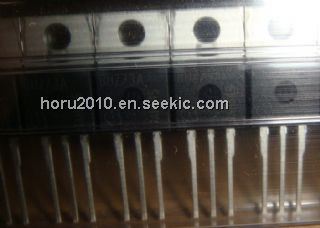

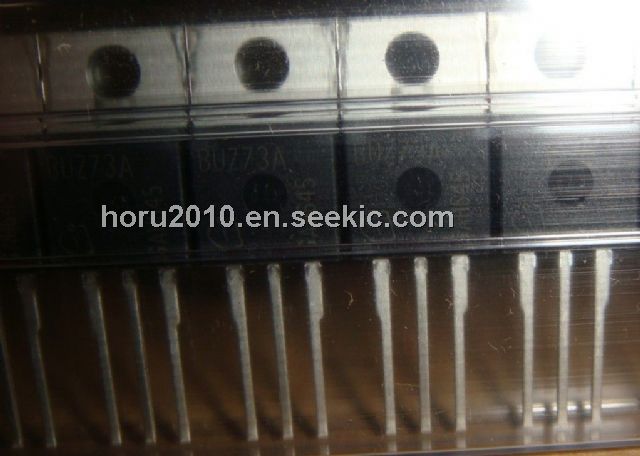

The BUZ73A is a SIPMOS Power Transistor.

Parametrics

BUZ73A absolute maximum ratings: (1)Gate source voltage: ±20V; (2)Power dissipation:TC=25℃: 40W; (3)Operating temperature: -55℃ to +150℃; (4)Storage temperature: -55℃ to +150℃; (5)Thermal resistance, chip case: ≤3.1K/W; (6)Thermal resistance, chip to ambient: 75K/W; (7)Continuous drain current: TC=37℃: 5.5A; (8)Pulsed drain current: TC=25℃: 22A; (9)Avalanche current, limited by Tjmax: 7A; (10)Avalanche energy, periodic limited by Tjmax: 6.5mJ.

Features

BUZ73A features: (1)N channel; (2)Enhancement mode; (3)Avalanche-rated; (4)Logic Level.

Diagrams

BUZ73A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BUZ73A H
BUZ73A H
Infineon Technologies
MOSFET N-Channel 200V Transistor
Data Sheet
0-1: $0.51
1-10: $0.45
10-100: $0.42
100-500: $0.37
BUZ73A H3046
BUZ73A H3046
Infineon Technologies
MOSFET N-Channel 200V Transistor
Data Sheet
0-1: $0.51
1-10: $0.45
10-100: $0.42
100-500: $0.37
BUZ73AL H
BUZ73AL H
Infineon Technologies
MOSFET N-Channel 200V Transistor
Data Sheet
0-1: $0.48
1-10: $0.43
10-100: $0.40
100-500: $0.35
BUZ73AL
BUZ73AL
Infineon Technologies
MOSFET N-CH 200V 5.5A
Data Sheet
Negotiable
BUZ73A
BUZ73A
Infineon Technologies
MOSFET N-CH 200V 5.5A
Data Sheet
Negotiable
BUZ73A E3046
BUZ73A E3046

MOSFET N-CH 200V 5.5A TO-220
Data Sheet
Negotiable
