Product Summary

The BIT3193G is a High Performance PWM Controller.

Parametrics

BIT3193G absolute maximum ratings: (1)Supply Voltages Pin VDD input: 4.0 to 8 V; (2)Chip Consumed Current: 4 mA; (3)Error Amplifier Reference Voltage Non-Inverting input of the error; (4)amplifier: 1.2125 to 1.2875 V; (5)Line regulation : 2 mV; (6)Under Voltage Look Out Positive Going Threshold: 3.8 to 4.2 V; (7)High Frequency Ramp Wave Generator Operating Frequency: 50KHz; (8)Output peak(CTOSC): 2.25 V.

Features

BIT3193G features: (1)Open Load Detection Pin ISEN open load detection lower threshold: 1.3 V; (2)Hysterisis: 20 mV; (3)Over Voltage Detection and Clamping Pin CLAMP over voltage detection lower threshold: 2.0 V; (4)Hysterisis: 20 mV; (5)INN pin pull-up current source: 60 uA.

Diagrams

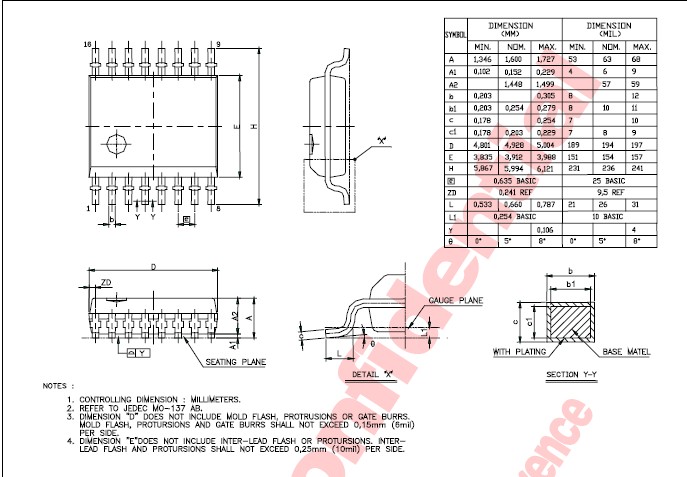

BIT3193G dimension
