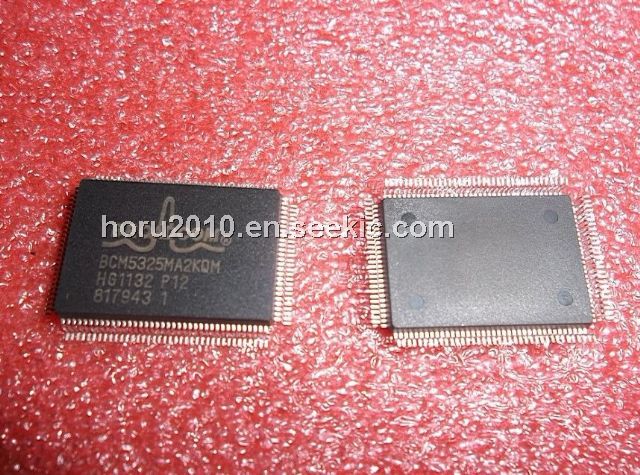

Product Summary

The BCM5325MA2KQM is a five-port 10/100 switch with on-chip packet buffer. The BCM5325MA2KQM is a highly integrated solution. The BCM5325MA2KQM combines all the functions of a high-speed switch system—including packet buffer, PHY transceivers, media access controllers, address management, and a non-blocking switch fabric—into a single 0.18μ CMOS device. It complies with the IEEE 802.3, 802.3μ, and 802.3x specifications, including the MAC control PAUSE frame and autonegotiation subsections, providing compatibility with all industry-standard Ethernet and Fast Ethernet devices.

Features

BCM5325MA2KQM features: (1)The highest level of silicon integration achieved for a five-port 10/100 Ethernet switch device; (2)Fourth generation switch on a chip; (3)Packet classification 802.1p QoS priority queues; (4)Port-based VLAN; (5)MII or 7-wire interface supports an additional 100FX or 100TX connection enabling a sixth user connection or uplink; (6)Supports up to 2K MAC addresses; (7)Flow control: full-duplex (802.3x) and half-duplex options supported; (8)Supports automatic address learning and aging; (9)Internal oscillator circuit; (10)Typical power consumption: < 1.4W; (11)128-pin PQFP package.

Diagrams

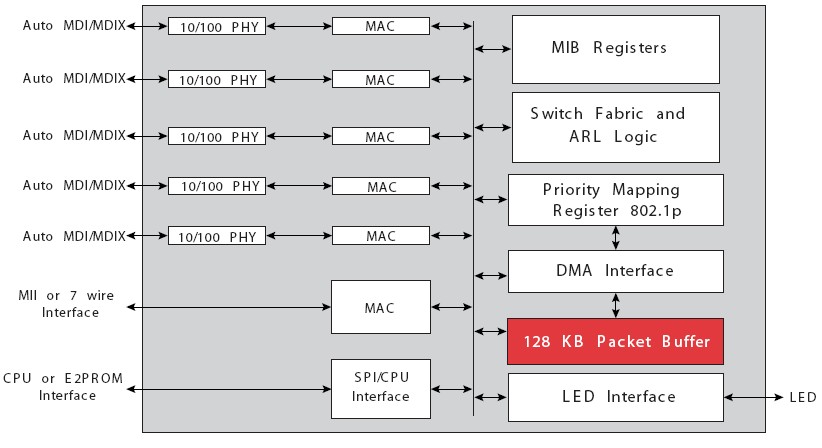

BCM5325MA2KQM block diagram
