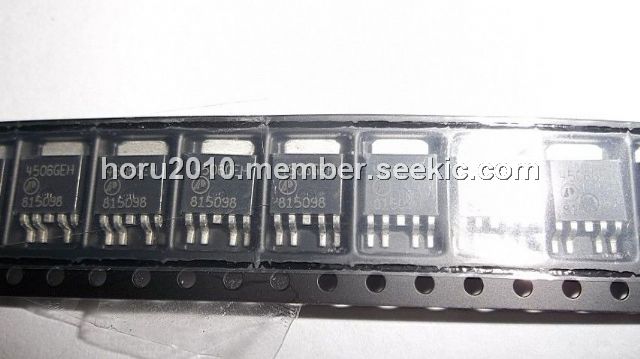

Product Summary

The AP4506GEH is an advanced Power MOSFET from APEC provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

Parametrics

AP4506GEH absolute maximum ratings: (1)VDS Drain-Source Voltage: 30 -30V; (2)VGS Gate-Source Voltage: ±20V; (3)ID@TA=25℃ Continuous Drain Current: 9A -8 A; (4)ID@TA=70℃ Continuous Drain Current: 7.2A -6.4A; (5)IDM Pulsed Drain Current: 50 -50A; (6)PD@TA=25℃ Total Power Dissipation: 3.1W; (7)TSTG Storage Temperature Range: -55 to 150℃; (8)TJ Operating Junction Temperature Range: -55 to 150℃.

Features

AP4506GEH features: (1)Simple Drive Requirement; (2)Good Thermal Performance; (3)Fast Switching Performance.

Diagrams

AP4506GEH block diagram
