Product Summary

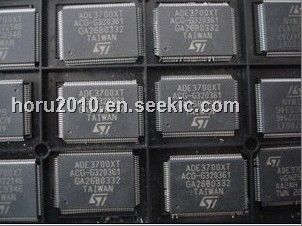

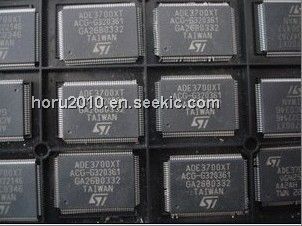

The ADE3700XT is a highly-integrated display engine IC, enabling the most advanced, flexible, and cost-effective system-on-chip solutions for analog-only input LCD display applications. The ADE3700XT covers the full range of XGA and SXGA analog-only applications including Smart Panel designs. The ADE3700XT family is pin-to-pin compatible and comes in a low-cost, 128-pin LQFP package. The device uses the same software platform and are backward-compatible with the previous generation of ADE3xxx Scaling Engines.

Parametrics

ADE3700XT absolute maximum ratings: (1)Supply voltage: 1.95 V; (2)Supply voltage: 3.6 V; (3)VIN Max voltage on 5 volt tolerant input pins: 6.1 V; (4)TSTG Storage temperature: -40 to +150℃.

Features

ADE3700XT features: (1)Programmable Context Sensitive Scaling; (2)High-quality Up-scaling and Down-scaling; (3)Integrated 9-bit ADC/PLL; (4)IQSync. AutoSetup; (5)Integrated programmable Timing Controller; (6)Integrated Pattern Generator; (7)Perfect Picture Technology; (8)sRGB 3D Color Warp; (9)Integrated OSD; (10)Advanced EMI reduction features; (11)Framelock operation with Safety Mode; (12)Serial I2C interface; (13)Low power 0.18 μm process technology.

Diagrams

ADE3700XT block diagram
