Product Summary

The AD7224KN is a Digital-to-Analog Converter. The AD7224KN is a precision 8-bit voltage-output, digital-to analog converter, with output amplifier and double buffered interface logic on a monolithic CMOS chip. No external trims are required to achieve full specified performance for the part.

Parametrics

AD7224KN absolute maximum ratings: (1)VDD to AGND: –0.3 V, +17 V; (2)VDD to DGND: –0.3 V, +17 V; (3)VDD to VSS: –0.3 V, +24 V; (4)AGND to DGND: –0.3 V, VDD; (5)Digital Input Voltage to DGND: –0.3 V, VDD + 0.3 V; (6)VREF to AGND: –0.3 V, VDD + 0.3 V; (7)VOUT to AGND2: VSS, VDD; (8)Power Dissipation (Any Package) to +75℃: 450 mW; (9)Derates above 75℃ by: 6 mW/℃; (10)Operating Temperature: –40℃ to +85℃; (11)Storage Temperature: –65℃ to +150℃; (12)Lead Temperature (Soldering, 10 secs): +300℃.

Features

AD7224KN features: (1)8-Bit CMOS DAC with Output Amplifiers; (2)Operates with Single or Dual Supplies; (3)Low Total Unadjusted Error: Less Than 1 LSB Over Temperature; (4)Extended Temperature Range Operation; (5)μP-Compatible with Double Buffered Inputs; (6)Standard 18-Pin DIPs, and 20-Terminal Surface; (7)Mount Package and SOIC Package.

Diagrams

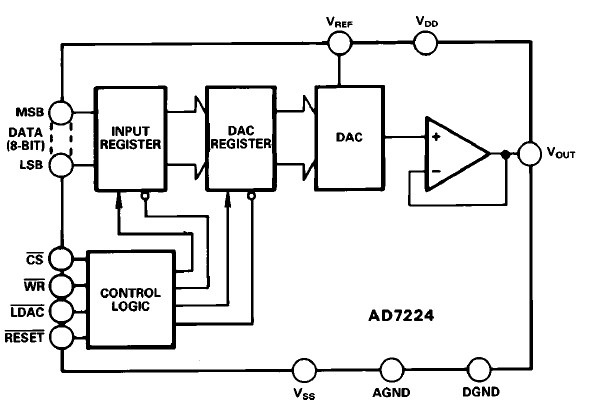

AD7224KN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

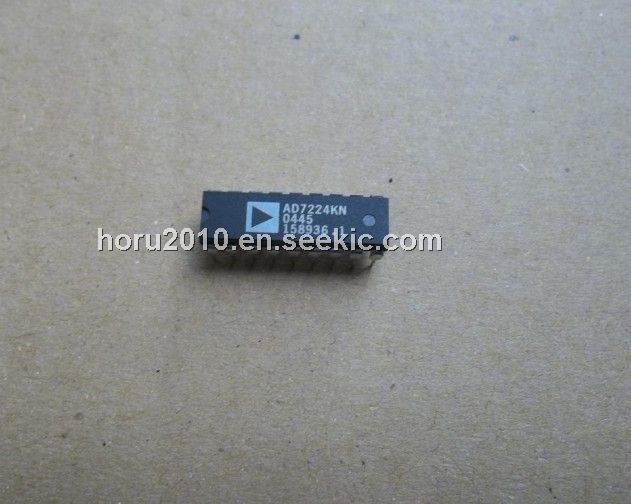

AD7224KN
AD7224KN

IC DAC 8BIT LC2MOS 18-DIP
Data Sheet
0-40: $5.91
AD7224KNZ
AD7224KNZ

IC DAC 8BIT LC2MOS 18-DIP
Data Sheet
0-1: $6.10
1-10: $5.54
10-100: $4.71
100-250: $4.29
250-500: $4.02
500-1000: $3.69
