Product Summary
The AD535JH is a monolithic laser-trimmed two-quadrant divider having performance specifitions previously found only in expensive hybrid or modular products. A maximum divider error of ±0.5% is guaranteed for the AD535JH without any external trimming over a denominator range of 10:1; ±2.0% max error over a range of 50:1. A maximum error of ±1% over the 50:1 denominator range is guaranteed with the addition of two external trims. The AD535JH is the first divider to offer fully differential, high impedance operation on all inputs. The applications of the AD535JH include General Analog Signal Processing, Differential Ratio and Percentage Computations, Precision AGC Loops, and Square-Rooting.
Parametrics
AD535JH absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Internal Power Dissipation: 500mW; (3)Output Short-Circuit to Ground: Indefinite; (4)Input Voltages, X1, X2, Y1, Y2, Z1, Z2: ±VS; (5)Rated Operating Temperature Range: 0℃ to 70℃; (6)Storage Temperature range: -65℃ to +150℃; (7)Lead Temperature, 60s soldering: +300℃.
Features
AD535JH features: (1)Pretrimmed to ±0.5% max Error, 10:1 Denominator Range; (2)±2.0% max Error, 50:1 Denominator Range; (3)All Inputs (X, Y, and Z) Differential.

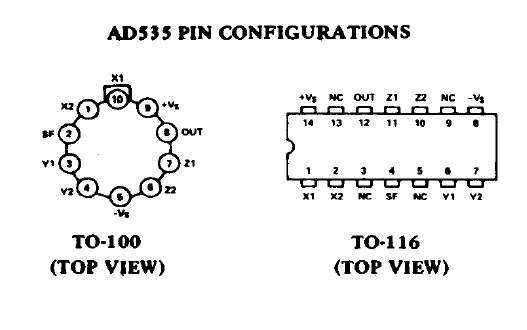

Diagrams
